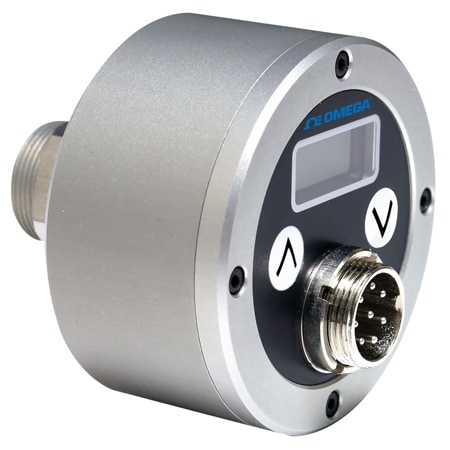

DwyerOmegaOSAE-Series

OS-AE11-201

Compact Fixed IR Sensor with Adjustable Emissivity and Display

가격: 554,530 원

VAT 10%: 55,453 원

총 금액: 609,983 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy Detail:± 1% of reading or ± 1.5ºC, whichever is greater

Additional Features 1:Fixed Mounting Bracket, Adjustable Mounting Bracket

Approvals:asd

Cable Length:3 m

Current Draw:100 mA

Display:Yes

EMC Standard:EN 61326

Emissivity Note:0.100 ~ 1.000 (adjustable)

Emissivity, Max:1

Emissivity, Min:0.1

Enclosure Ratings:IP65, NEMA Type 4

Housing Material:Aluminum

Impedance:10 kΩ

Intrisically Safe:No

Laser Classification:Class 2

Laser Output:false

Loop Resistance, Max:500 Ω

Operating Temperature, Max:70 °C

Operating Temperature, Min:0 °C

Optics:20:1

Output Signal:Current

Process Temperature, Max:500 °C

Process Temperature, Min:0 °C

Relative Humidity, Max:95%

Relative Humidity, Min:10%

Repeatability:± 0.5%

Repeatability Note:± 0.5% of reading or ± 1ºC, whichever is greater

Response Time:150 ms

Spectral Response, Max:14 μm

Spectral Response, Min:8 μm

Statistics:Average, Peak Hold, Valley Hold

Storage Temperature, Max:80 °C

Storage Temperature, Min:-20 °C

Supply Power Note:24 VDC ± 20%

Supply Voltage:24 Vdc

Temperature Resolution:0.1 °C

Weight:200 g
