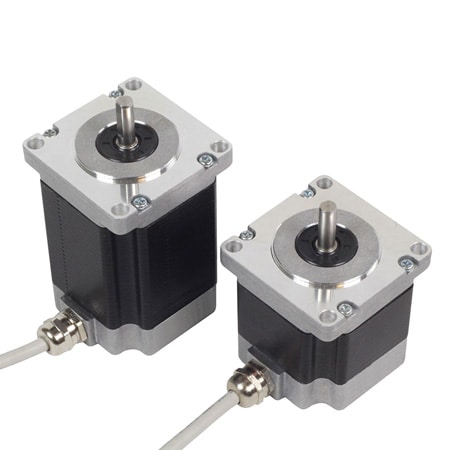

DwyerOmegaOMHW-Srs-Stepper-Motors
OMHW23-753
- 가격
- 686,170 원
- VAT 10%
- 68,617 원
- 총 금액
- 754,787 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Washdown Capable
Construction Type:single
Control Interfaces & Operating Modes:Motor Connection: Series, Parallel, Unipolar
Electrical Rating Note:Series Voltage=9.9 V; Parallel Voltage=4.9 V; Unipolar Voltage=7 V; Series Current=0.71 A; Parallel Current=1.41 A; Unipolar Current=0.0416 A
Enclosure Ratings:IP65
Form factor:NEMA 23
Holding Torque:153 oz-in
Impedance Details:Series Resistance: 14 Ω; Parallel Resistance: 3.5 Ω; Unipolar Resistance: 7 Ω; Series Inductance: 51.2 mH; Parallel Inductance: 12.8 mH; Unipolar Inductance: 12.8 mH
Length:55.5 mm
Mechanical Form-Factor & Load Capacity:Rotor Inertia: 1.20 oz-inch²; Shaft Run-Out: 0.002 in; Radial Play, Max: 0.0008 @ 1.1 lb; End Play, Max: 0.003 @ 2.2 lb; Radial Load, Max: 15 lbs; Thrust Load, Max: 25 lbs
Motion Precision & Smoothness:Step Angle: 1.8°
Number of Wires:8
Operating Temperature, Max:50 °C
Operating Temperature, Min:-20 °C
Weight:549 g
Wire Gauge:22 AWG
