DwyerOmegaOME-A-826PG-series

OME-DB-8225/2

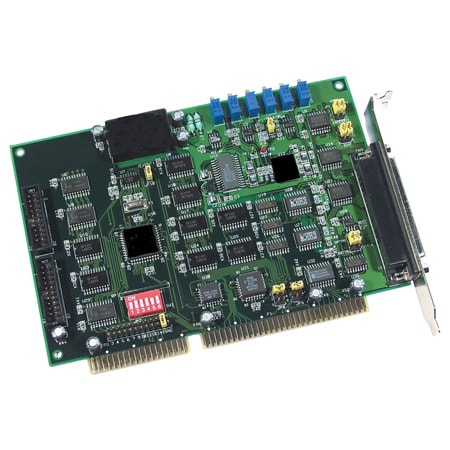

100 S/s 16-Channel 16-Bit Analog Input Board for the ISA Bus

가격: 330,400 원

VAT 10%: 33,040 원

총 금액: 363,440 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

ADC Resolution:16 bit

Additional Features 1:1 m 37-pin D-sub Cable

Channels:Interrupt Channel: 3-15 jumper selectable"

Conversion Rate:100 KS/s

Counter Input Note:Counter Timer Type: 82C54,A/D Pacer: 16-bit counter

Digital I/O Note:Inputs: 16 (LSTTL) Input Low: VIL = 0.8 V max IIL = -0.4 mA max Input High: VIH = 2.0 V min IIH = 20 µA max Outputs: 16 channel TTL levels Outputs Low: VOL = 0.5 V max @ IOL = 8 mA max Outputs High: VOH = 2.7 V min IOH = -400 µA max

Electrical Connection:Analog I/O, 37-pin D-Sub; digital I/O, two 20-pin headers

Form factor:Panel Mount 2M cable

Height:122 mm

Impedance Input:10,000 Ω/6pf

Linearity:+1-bit

Number of Channels:1,2

Number of Channels Note:16-channel single-ended or 8-channel differential; Channels: 2 independent;Type: 12-bit double buffers;Linearity: 0.006% FS;Output Driving: 5 mA;Output Range: 0 to 5 V or 0 to 10 V;External Reference: Max +10 V;Output Current: +5 mA

Operating Temperature, Max:50 °C

Operating Temperature, Min:0 °C

Over-Voltage Protection:+35 V

Power Consumption:+5 V @ 650 mA

Relative Humidity:0 to 90 % RH non-condensing

Samples Note:Sample-and-Hold: On-Chip

Software:Windows 95/98/NT

Storage Temperature, Max:70 °C

Storage Temperature, Min:-20 °C

Timer Measurement Range:0.0045 Hz

Voltage Measurement Range:+10 V, +5 V, +2.5 V, +1.25 V

Width:170 mm

Zero Drift:19 ppm/°C of full scale
