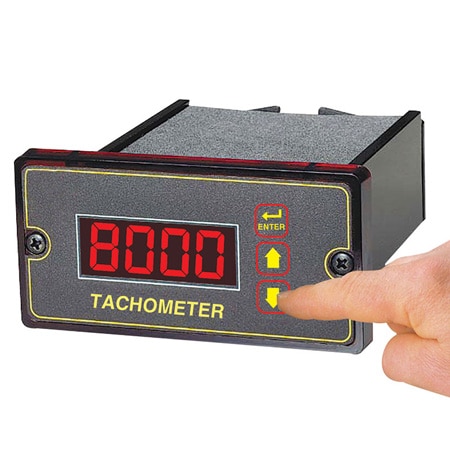

DwyerOmegaOMDC-DM8000-Series
OMDC-DM8000
0.001 to 9,999 rpm, Alarm Relay
- 가격
- 1,096,940 원
- VAT 10%
- 109,694 원
- 총 금액
- 1,206,634 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.04 %
Accuracy Detail:±0.04% display update every pulse or 0.5 seconds, whichever is longer
Alarm Output:5 A, 230 Vac
Alarm Relay:240 Vac @ 5 A
Alarm Setpoint:0 to 9999
Control Output:Alarm Relay
Current Sink, Max:50 mA
Display Color:Red
Display Measuring Units:User programmable
Display Range:0.001 to 99,990
Display Size:13 mm (0.51 in)
Display Type:4 Digit LED
Electrical Connection:7/8 in knockout with Screw Terminal block
Enclosure Type:NEMA Type 4X
Frequency:48 to 62 Hz
Frequency Input Range:0 to 1666 Hz
Housing Material:Aluminum
Input Control Signal:0 to 5 , 0 to 24 Vdc
Mounting Orientation:Shaft-Mounted
Operating Humidity:0 to 95% RH
Operating Temperature, Max:45 °C
Operating Temperature, Min:-10 °C
Pad Material:Polycarbonate with polycarbonate overlay
Panel Depth:117.5 mm
Resolution:From 0.01 rpm
Supply Voltage:85 to 265 Vac
Tightening Torque:0.5 Nm
Weight:382 g
Width:115.3 mm
