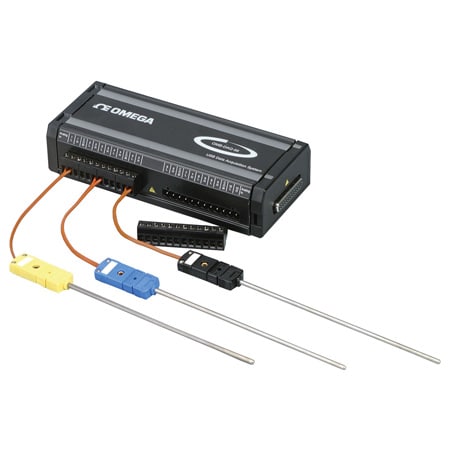

DwyerOmegaOMB-DAQ55-Series
OMB-DAQ-55
USB Data Acquisition Modules for Thermocouples Process Signals
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:22-Bit A/D
Accuracy:± 0.5 °C
Analog I/O Note:Analog Input Note: Analog Specifications;Each channel is configurable for single-ended or differential, Volts, or thermocouple inputs;Thermocouple Accuracy;In very slow mode, 22 bit resolution, includes cold junction compensation error;J (±1.1°C), K (±1.2°C), T (±1.1°C); E (±1.0°C), R (±2.5°C), S (±2.6°C), B (±3.3°C), N (±1.5°C);Cold Junction Compensation Accuracy: (±0.5°C),;Over-Voltage Protection: ±45 V relative to analog Lo;AC Common Mode Rejection: >120 dB @ 60 Hz;Channel-to-Channel Crosstalk: <-120 dB (DC to 100 Hz);;Accuracy;OMB-DAQ-55/56: 0.015% of reading +0.002% of range (exclusive of noise);Input Resistance: >10 M Ohm (SE), >20 M Ohm (DE);Bias Current: <1 nA (0-35°C)
Bandwidth:DC to 1 MHz
CMRR:>120 dB @ 60 Hz
Configuration Parameters:Open-Collector Driver, Schmitt-Trigger Input, User-Configurable Input/Output
Data Interface:Ethernet
Data Interface Note:Supported Operating System: Microsoft Windows®XP SP2 / VISTA/7
Digital I/O Note:Digital Output Maximum Switch Voltage:0 to +15 Vdc (20 V for <1 minute) Maximum Switch Current: 150 mA/output continuous, 500 mA/output peak (<100 µs),150 mA total continuous (per bank of 8 outputs) Output Resistance: 10 Ohms max;Cross talk: <-120 dB (DC to 100 Hz);Sink Current: 150 mA
Digital Input:Digital: Low <1.3 Vdc
Height:45 mm
Input Configuration:Connected Software
Input Resistance:>10 MΩ (SE), >20 MΩ (DE)
Input Type:Thermocouple, Voltage
Isolation:500V from PC
Length:182 mm
Number of Channels, Input:Analog: 5 DE, 10 SE, Frquency/Pulse: 2, Digital: 8
Number of Channels, Output:Digital: 8
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Output Resistance:10 Ω
Output Signal:Digital
Pull-up Resistor:27 KΩ to 5V for Switch or Relay Sensing
Relative Humidity:0 to 95% RH non-condensing
Sampling Rate:80 Hz (80 updates/second)
Software:DASYLab®, and LabVIEW®
Supply Power Note:Powered from USB, or from external 6 to 16 Vdc when used with a bus powered hub
Supply Power Type:DC/USB
Supply Voltage:6 to 16 Vdc
Voltage Measurement Range:±20V, -10 to 20V, ±10V, ±5V, ±4V, ±2.5V, ±2V, ±1.25V, ±1V, ±625 mV, ±500 mV, ±312 mV, ±250 mV , ±156 mV , ±125 mV, ±62 mV, ±31 mV, Differential, Single ended
Width:92 mm
