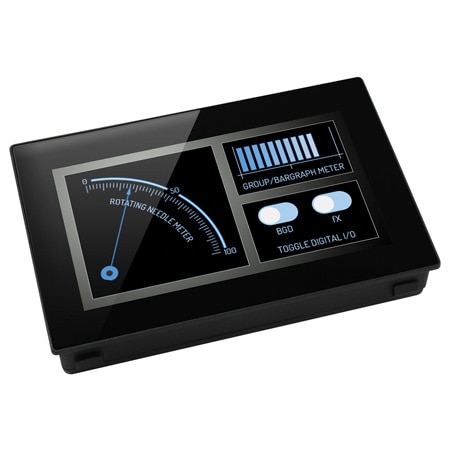

DwyerOmegaOM-SGD-43-A-series
OM-SGD-43-A
- 가격
- 759,640 원
- VAT 10%
- 75,964 원
- 총 금액
- 835,604 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Detail:0.05% ±1 mV typical (for measurements up to ±10V)
Additional Features 1:4 PWM Outputs, 8 Digital I/O
Control Output:2 Open Collector
Conversion Rate:16-bit
Current Measurement Range:4 to 20 mA
Cutout Dimensions:78 x 117 mm
Data Interface:RS232, SPI, I2C, RS485, Ethernet
Data Interface Note:Modes: RS232, SPI (Serial Peripheral Interface Bus), I2C (Inter-Integrated Circuit), RS485, Ethernet (hardware capability–will be made available for use in a future software update)
Digital I/O Note:No. of Digital I/O: 8 Input Voltage (High): 3.3V max, 2V min Input Voltage (Low): 0.8V max, 0V min Output Voltage (High): 3.3V max, 2.6V min Output Voltage (Low): 0.4V max, 0V min Output Source Current: -11.4 mA min Output Sink Current: 9.0 mA min
Display Color:262K colors
Display Size:109 mm (4.3 in)
Display Type:TFT
Display Type Note:4.3" TFT capacitive touchscreen with 262K colors, 480 x 272 pixel
Form factor:4.70 in x 3.10 in
Height:79.8 mm
Input Type:Current, Voltage
Input Type Note:4 voltage inputs up to ±40V or 4 current inputs of 4 to 20 mA
Memory:1 Gbit DDR2 SDRAM and 2 GB SD card
Number of Inputs:4
Operating Temperature, Max:40 °C
Operating Temperature, Min:0 °C
Output Configurations:No. of PWM Outputs: 4 (8-bit); Voltage: 3.3V max; Output Source Current (PWM): -9.5 mA; Output Sink Current (PWM): 7.7 mA min
Output Detail:Open-collector (sink up to 10 mA max each)
Sampling Rate:3 Hz (3 updates/second)
Software:Windows XP SP3/Vista/7/8 With Freescale i.MX283 (454 MHz, 32 bit, ARM 9) Processor
Supply Power Note:5 to 30 Vdc (300 mA typical at 5 Vdc)
Supply Power Type:DC
Supply Voltage:5 to 30 Vdc
Weight:0.23 kg
Width:119.3 mm
