DwyerOmegaOM-SGD-SERIES
OM-SGD-24-M-IP420

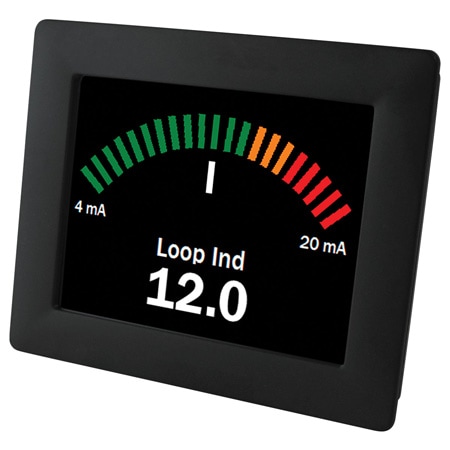

Smart Graphics Process Meters
- 가격
- 645,040 원
- VAT 10%
- 64,504 원
- 총 금액
- 709,544 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Detail:0.05% typical, 0.1% max
Additional Features 1:40 Customizable Display Configurations;Include 32 mm Mounting Nuts and IP67 Connector
Control Output:2 Open Collector
Current Measurement Range:35 to 190 mA
Display Size:61 mm (2.4 in)
Display Type:TFT
Display Type Note:Color TFT, 320 x 240 pixel, 16-bit color
Electrical Connection:Screw Terminal
Enclosure Ratings:IP67
Form factor:2.91 in x 1.81 in
Input Type:Current
Input Type Note:4 to 20 mA typical, 0 mA min, 50 mA max
Linearity:±1 count max (depends on user calibration settings)
Loop Voltage Drop Note:0.4 to 2.0V typical, 0V min, 5.0V max
Material Construction Option:Waterproof
Number of Inputs:1
Operating Temperature, Max:40 °C
Operating Temperature, Min:0 °C
Output Detail:2 open-collector outputs (sink up to 10 mA max each)
Sampling Rate:3 Hz (3 updates/second)
Software:Windows® XP/Vista/7/8
Supply Power Note:4 to 30 Vdc (from external power supply or via USB connection, compatible with USB 1.0 and 2.0)
Supply Power Type:DC
Supply Voltage:4 to 30 Vdc
Weight:255 g
