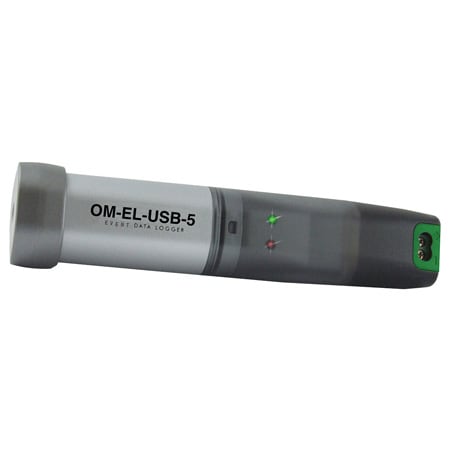

DwyerOmegaOM-EL-USB-5-Logger

OM-EL-USB-5

The OM-EL-USB-5 standalone data logger records and counts events and state changes 32,510 events, state changes or timed intervals can be recorded.

가격: 214,790 원

VAT 10%: 21,479 원

총 금액: 236,269 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Accuracy:±3 sec

Accuracy Detail:±3 sec per 24 hours at 20°C

Battery life:up to 1 yr

Battery Size and Type:3.6V Li-ion

Contact Current:35 µA

Contact Voltage:2.75V min, 3.6V max

Data Interface:USB

Electrical Connection:Screw Terminal

Event Count Time:LED Enable: 50 msec min;LED Disable: 10 msec min

Height:3.86 in

LED Indicators:Green LED flashes once every 10 sec to indicate normal logging, once every 20 sec to indicate low battery or twice every 20 sec to indicate data logger memory full;Red LED can be set up to flash once each time an event, state change or count is recorded

Memory:Event Mode/State Change Mode: Up to 32,510 readings, Event Counter Mode: Up to 32,510

Number of Measurements:1

Operating Temperature, Max:80 °C

Operating Temperature, Min:-35 °C

Relative Humidity:0 to 100% RH

Samples,Max:0.5 sec

Series ID:OM-EL-USB-5-Logger

Software:Windows 2000/XP/VISTA/ 7 and 8 (32-bit and 64-bit)

Supply Power Type:Battery

Trigger Voltage:6.4 Vdc Low, 16 Vdc High

Voltage Input Range:0 to 24 vdc

Weight:1.4 oz
