DwyerOmegaOM-DVCV-Logger
OM-DVCV

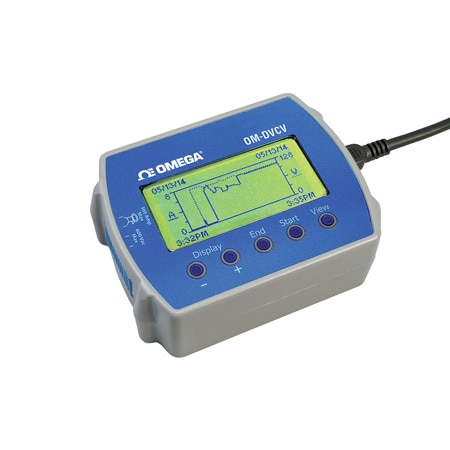

AC Current and Voltage Data Logger with Display
- 가격
- 557,730 원
- VAT 10%
- 55,773 원
- 총 금액
- 613,503 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm Note:Visual over and under alarm indicator for current and voltage; watts alarms are not available
Battery Size and Type:Alkaline AA
Battery life:up to 1 yr
Current Measurement Range:1 to 300 Aac
Data Interface:USB
Display Note:Text Display: Displays real time current, voltage and watts; displays logging summary, sample rate, memory used and memory left. Graph Display: Shows measurement trends graphically; graph can be scrolled through the entire logged data.
Display Type:LCD
File Formats:excel, Text
Height:1.5 in
Length:3.05 in
Measurement Type:AC Current, AC Voltage
Number of Measurements:1
Operating Temperature, Max:65 °C
Operating Temperature, Min:-10 °C
Real Time Recording:Visual indication through the status LED. Software real time status
Resolution:Current: 0.2 A, Voltage: 0.2 V
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 Second to 9 hours
Software:Windows XP/Vista/7, 8, 10
Start Modes:Adjustable Delay Start, Immediate Start
Stop Modes:When Memory is Full
Storage Capacity:43,344 points for current or voltage only; 21,672 points for current and voltage
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Power Type:Battery
Time Accuracy:±100 ppm @ 24°C (75°F)
USB Cable Length:6 ft
Variables Logged:User Selectable; Disabling channels increases the storage capacity of the other channels
Voltage Measurement Range:1 to 600 Vac
Weight:200 g
Width:4 in
