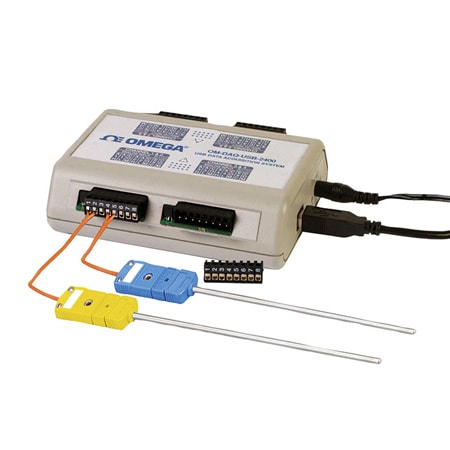

DwyerOmegaOMB-DAQ-USB-2401

OM-DAQ-USB-2401

Portable USB thermocouple/voltage input data acquisitionmodule

가격: 1,721,140 원

VAT 10%: 172,114 원

총 금액: 1,893,254 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.02 %

Analog I/O Note:Analog Input Note: TC Input;Thermocouple Accuracy: In very slow mode, 24 bit resolution: J = ±1.1°C, K = ±1.2°C, T = ±1.1°C, E = ±1.0°C, R = ±2.5°C, S = ±2.6°C, B = ±3.3°C, N = ±1.5°C ;Cold Junction Compensation Accuracy: ±1.0°C;Analog Input Accuracy;Differential Input: In very slow mode, 0.015% of reading +0.004% of range +10uV (exclusive of noise);Single-End Input: In very slow mode, 0.05% of reading +0.01% of range +50uV (exclusive of noise);Open Thermocouple Detect: Automatically enable when a channel is configured for a thermocouple sensor

Configuration Parameters:User-Configurable Input/Output

Data Interface:Ethernet, USB 1.1, USB 2.0

Data Interface Note:Configuration Method: DAQ Central Software;Supported Operating System: Microsoft Windows®XP SP2 / VISTA/7

Digital Output:12 Vdc

Height:39 mm

Input Configuration:Connected Software

Input Type:Thermocouple, Voltage

Isolation:500V from PC

LED Indicators:Power and Activity LEDs Blink

Length:128 mm

Mounting:DIN-Rail or Wall Mount

Number of Channels, Input:Analog: 16 SE/8 DIFF

Operating Temperature, Max:50 °C

Operating Temperature, Min:0 °C

Output Signal:N/A

Relative Humidity:0 to 95% RH non-condensing

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Power Note:Powered direct from USB port, max 500 mA, or from external 7.5 to 12 Vdc, External Excitation Output Voltage: 12 Vdc regulated, max total current output 67 mA

Supply Voltage:5 Vdc

Voltage Measurement Range:±10V, ±500 mV, ±5V,±250 mV, ±2.5V, ±125 mV, ±2V, ±75 mV, ±1V, ±30 mV

Weight:0.23 kg

Width:107 mm
