DwyerOmegaOM-CP-WIND101A-KIT-Series
OM-CP-WIND101A-KIT-50

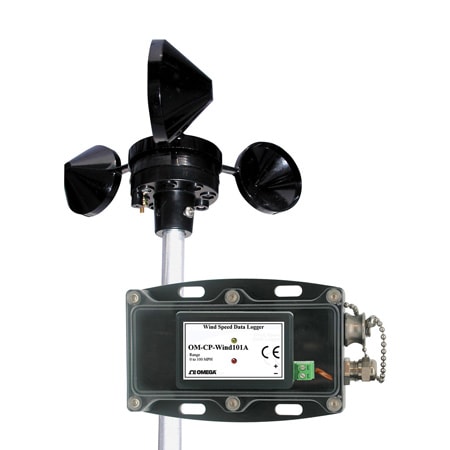

Wind Speed Data Logger
- 가격
- 1,077,170 원
- VAT 10%
- 107,717 원
- 총 금액
- 1,184,887 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 2.5 %
Accuracy Detail:±2.0 mph from 0 to 10 mph; ±2.5% of reading from >10 to 100 mph
Anemometer Dimensions:2.1" H x 7.5" D
Battery Size and Type:3.6V Li-ion
Battery life:up to 10 yr
Baud Rate:115200
Cable Length:50 ft
Data Interface:USB
Data Retention:Start and Stop the device multiple times without having to download data or communicate with a PC. Activation: To Start the Device: Press and hold the Pushbutton for 5 seconds, the Green LED will flash During this time; the device has Started Logging
Display Measuring Units:knot, KPH, m/s, mph
Enclosure Ratings:IP65, NEMA Type 4
Height:1.5 in
Housing Depth:0.9 in
Housing Height:3.7 in
Housing Width:2.5 in
Indicator Type:Red LED, Green LED
Length:2.9 in
Materials:ABS
Measurement Range Note:Starting Threshold: 1.75 mph
Measurement Type:Wind Speed mph
Measuring Range:0 to 100 mph
Memory:500,000 readings
Memory Modes:Yes
Memory Note:500,000 readings; software configurable memory wrap 250,000 readings multiple start/stop
Number of Measurements:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Programmable Functions:Security
Real Time Recording:The device may be used with PC to monitor and record data Real-time
Relative Humidity:0 to 100% RH non-condensing
Resolution:Measurement: 0.085 mph
Resolution Note:0.085 mph at 10 Second Readingterval
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 Second to 24 hours
Sensor Type:3-cup anemometer
Software:XP SP3/Vista/7 and 8
Start Modes:Delayed Start, Immediate Start, Push-button
Stop Modes:Adjustable Delay Stop, Manual Through Software
Supply Power Type:Battery
Temperature Note:Operating Environment: -20 to 60ºC, Anemometer Operating Environment: -55 to 60ºC
Time Accuracy:±1 minute/ month at 20ºC (68ºF), stand alone data logging
USB Cable Length:6 ft
Weight:513 g
Width:5.8 in
