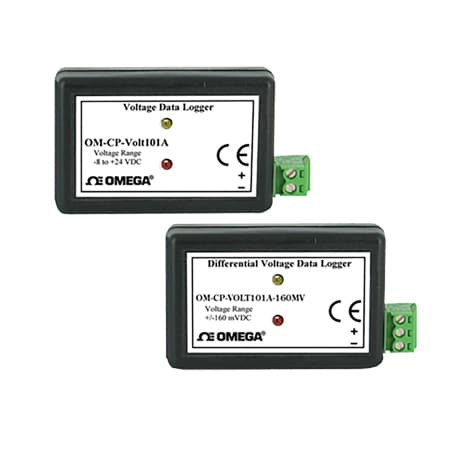

DwyerOmegaOM-CP-VOLT101A-Series
OM-CP-VOLT101A-15V
"HAZ-LITH"-8 TO +24.75V DC VOLT LGR CE
- 가격
- 415,900 원
- VAT 10%
- 41,590 원
- 총 금액
- 457,490 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Nominal range @ 25°C
Alarm:User selectable high and low limits; blinking LED for alarm and low battery
Baud Rate:115200
Calibration Accuracy:±0.05%
Calibration Note:Digital calibration through software, automatically recorded within device
Conversion Time:133 ms
Current Measurement Range:N/A
Data Interface:USB
Electrical Connection:Removable Screw Terminal
Frequency Rejection:50 to 60 Hz
Height:1.4 in
Housing Depth:1.5 in
Housing Height:2.9 in
Housing Width:5.8 in
Impedance Input:125 kΩ
Input Control Signal:± 15 V
LED Functionality:Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory
Length:0.6 in
Materials:Aluminum, ABS
Measurement Type:Voltage
Memory:1,000,000 readings
Memory Modes:Yes
Memory Note:1,000,000 readings; software configurable memory wrap 333,000 readings in multiple start/ stop mode
Number of Channels:1
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Overload Protection:±50 V
Programmable Functions:Security
Real Time Recording:May be used with PC to monitor and record data in real time
Relative Humidity:0 to 95% RH
Resolution:0.5 mV
Sampling Rate Note:3 readings a second (4 hz) to 1 reading every 24 hours
Software:WIN XP SP3/VISTA/7 and 8
Start Modes:Button Push, Delayed Start, Immediate Start
Supply Power:3.6 V Lithium Battery
Supply Power Note:10 Years typical at a 15 Minute Reading Rate
Supply Power Type:Battery
Time Accuracy:±1 minute/month (at 20ºC, stand alone logging)
Voltage Measurement Range:-8 to +24 Vdc
Weight:24 g
Width:2.2 in
