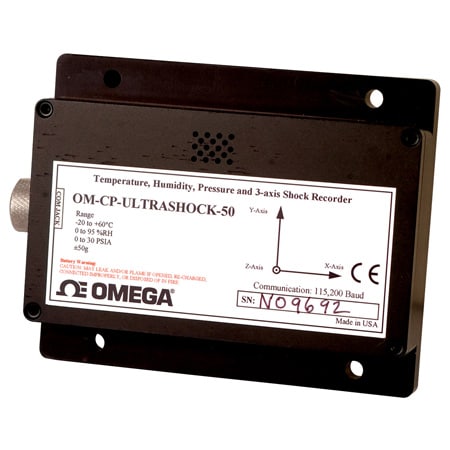

DwyerOmegaOM-CP-ULTRASHOCK-Series
OM-CP-ULTRASHOCK-5
Humidity, Temperature, Pressure and Tri-Axial Shock Data Logger Part of the NOMAD® Family
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Acceleration Range:± 5 g
Accelerometer Sensor Type:MEMS
Accuracy Detail:Calibration Accuracy : Humidity : ±3 %RH (±2 %RH typical at 25 °C), Pressure : ±1.0% FSR 25°C; ±0.2% typical, Temperature : ±0.5°C (0 to 50°C); Time Accuracy : ±1 min per month at 2 to 30°C
Approvals:CE
Battery Size and Type:Alkaline 9V
Battery life:up to 170 hr
Baud Rate:115200
Calibration:Digital calibration through software and automatically recorded within device
Calibration Accuracy:Humidity : ±3% RH, Temperature : ±0.5 °C, Pressure : ±1%, Accelerometer : ±0.2 g
Data Interface:USB
Data protection:Access by password
Frequency Response:0 to 400 Hz
Height:111 mm
Humidity Range:0 to 95% RH non-condensing
Length:89 mm
Materials:Aluminum
Measurement Pressure Type:Absolute
Measurement Pressure, Max:0 psi
Measurement Type:Temperature, Humidity, Pressure, Shock
Measuring Temperature Range, Max:60 °C
Measuring Temperature Range, Min:-20 °C
Memory:174,762 Readings
Millivolt Range:N/A
Number of Measurements:6
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Pressure Sensor Type:Silicon Strain Gage
Process Connection Size:1/4 in
Process Connection Type:N/A
Real Time Recording:Device can be used with PC to monitor and record instantaneous measurements in real-time
Relative Humidity Sensor Type:Capacitive Polymer
Resolution:Pressure : 0.002 psi, Humidity : 0.1% RH, Temperature : 0.1°C, Acceleration : 0.01 g
Sampling Rate:1.953 msec
Sampling Rate Note:1.953 ms/512 Hz 64 Hz to 5 minutes for shock, selectable in software. Temperature, pressure and humidity sampled approximately every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate.
Software:Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Start Modes:Delayed Start, Immediate Start
Supply Power Type:Battery
Temperature Sensor Type:Silicon Diode
Time Accuracy:±1 minute/month
Weight:341 g
Width:26 mm
