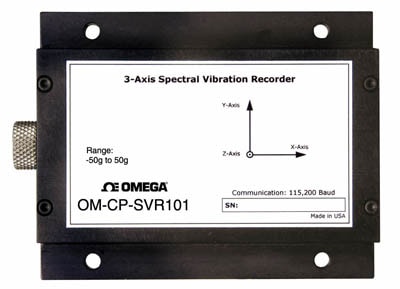

DwyerOmegaOM-CP-SVR101-Logger
OM-CP-SVR101
Spectral Vibration Data Logger
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Acceleration Range:± 50 g
Accelerometer Sensor Type:MEMS
Accuracy Detail:Time Accuracy : ±1 minute/month (at 20ºC, RS232 port not in use)
Approvals:CE
Battery Size and Type:Li-ion, 9V
Battery life:60 hr
Calibration:Digital calibration through software and automatically recorded within device
Calibration Accuracy:Accelerometer : ±1 g
Data Interface:USB
Height:112 mm
Humidity Range:0 to 95% RH non-condensing
Length:26 mm
Materials:Aluminum
Measurement Pressure Type:N/A
Measurement Pressure, Max:0 psi
Measurement Type:Vibration, Acceleration
Memory:3,971 Samples
Memory Note:16 Mbit (3,971 samples)
Millivolt Range:N/A
Number of Measurements:4
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Process Connection Size:1/4 in
Process Connection Type:N/A
Real Time Recording:May be used with PC to monitor and record instantaneous acceleration in real time
Resolution:Acceleration : 0.05 g
Sampling Rate:0.5 Hz (2 seconds between updates)
Sampling Rate Note:256 Hz (decimated to 128 Hz), FFT Period: 2 secs up to 4 hrs
Software:Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Start Modes:Delayed Start, Immediate Start
Supply Power Type:Battery
Time Accuracy:±1 minute/month
Weight:340 g
Width:26 mm
