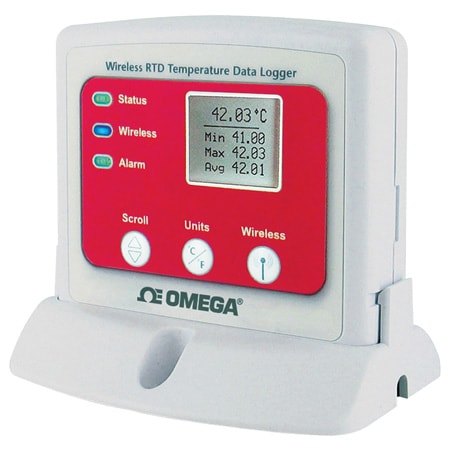

DwyerOmegaOM-CP-RFRTDTEMP2000A-Series
OM-CP-RFRTDTEMP2000A
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm Note:Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits, Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of dataAudible Alarm Functionality: 1 beep per second for reading alarm above/below threshold
Band Frequency:2.405 to 2.475 GHz
Band Frequency Note:ISM band 2.405 to 2.475 GHz operation (channels 11 through 25) @ 250 kbps data rate
Battery Size and Type:Li-ion, 9V
Battery life:4 yr, typical with reading interval of 1 min
Baud Rate:250000
Calibration:Digital Calibration through Software
Calibration Accuracy:Temperature: ± 0.05 °C
Calibration Date:Automated
Configuration:Omega Data Logging Software, Windows PC
Data Format:°C, °F, K, Ω, °R
Data Interface:Wireless, USB
Data Interface Note:USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000-EXT/ OM-CP-RFC1000-EXT-EUR/OM-CP-RFC1000-IP69K required for wireless operation
Display:LCD
Form factor:Wall Mount
Height:0.95 in
Input Type:Internal
LED Functionality:Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition
Length:3.25 in
Materials:Plastic
Measurement Type:Temperature
Memory Modes:Yes
Number of Measurements:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Power, Max:+0dBm
Pressure Resolution:0.02 mbar
Pulse Resolution:≤10 µS
RF Frequency:2.45 GHz
RF Frequency Note:2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
RH Resolution:0.001
RTD Type:2, 3 or 4-wire 100Ω Pt RTD, α= 0.00385
Relative Humidity:0 to 95% RH non-condensing
Response Time:Temperature: 10 min
Response Time Note:Temperature: 10 min free air
Samples,Max:21504 Samples, Interval Selectable 1 Sec to 24 hrs
Sensor Type:RTD
Software:XP SP3/Vista/7 and 8 (32 and 64-bit)
Start Modes:Delayed Start, Immediate Start
Supply Power Note:Ultralife 9V lithium battery included; user replaceable
Supply Power Type:Battery
Temperature Measurement, Max:850 °C
Temperature Measurement, Min:-200 °C
Time Accuracy:± 1 minute/month
Weight:4.1 oz
Width:3.5 in
