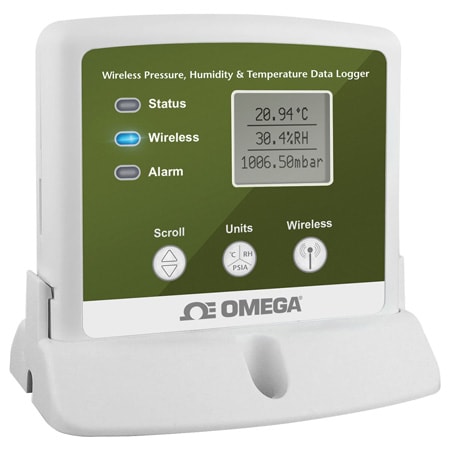

DwyerOmegaOM-CP-RFPRHTEMP2000A-Series
OM-CP-RFPRHTEMP2000A
2 WAY WRLS P/H/T LGR LCD CE
- 가격
- 1,013,320 원
- VAT 10%
- 101,332 원
- 총 금액
- 1,114,652 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Field Upgradeable
Alarm Note:User configurable audible, on-screen, email and text (SMS) alarms, Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data, Audible Alarm Functionality: 1 beep per second for reading alarm above/below threshold
Band Frequency:2.405 to 2.475 GHz
Band Frequency Note:ISM band 2.405 to 2.48 GHz (channels 11 through 25) @ 250 kbps data rate
Battery Size and Type:Li-ion, 9V
Battery life:5 yr, typical with reading interval of 1 min
Baud Rate:250000
Calibration:Digital Calibration through Software
Calibration Accuracy:Temperature: ± 0.5°C for 0 to 50°C, Pressure: ± 10 mbar, Relative Humidity: ± 3% RH
Calibration Date:Automated
Configuration:Omega Data Logging Software, Windows PC
Current Resolution:Temperature: 0.01°C, Resistance: 0.001 Ω
Data Format:atm, °C, dew point, °F, inHg, K, kPa, m, mbar, mg/mL, mmHg, MPa, Pa, PSI, °R, %RH, Torr
Data Interface:Wireless, USB
Data Interface Note:USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000- EXT required for wireless operation
Display:LCD
Form factor:Wall Mount
Height:0.95 in
Input Type:Internal
LED Functionality:Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition
Length:3 in
Materials:Plastic
Measurement Pressure, Max:1300 mBar
Measurement Pressure, Min:250 mBar
Measurement Type:Pressure, Relative Humidity, Temperature
Memory Modes:Yes
Number of Measurements:3
Operating Temperature Note:-20 to 60°C, 0.002 to 100 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
RF Frequency:2.45 GHz
RF Frequency Note:2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
RH Measurement Range:0 to 95% RH
RH Resolution:0.1%, 12 bit
Relative Humidity:0 to 95% RH non-condensing
Resistance Resolution:0.001 Ω
Samples,Max:10752 Samples, Interval Selectable 1 Sec to 24 hrs
Software:Windows XP SP3/Vista/7 and 8 (32 and 64-bit)
Start Modes:At set date and time, Button Push, Immediate Start, Next Interval
Supply Power Type:Battery
Temperature Measurement, Max:60 °C
Temperature Measurement, Min:-20 °C
Temperature Resolution:0.01 °C
Time Accuracy:± 1 minute/month
Weight:4.9 oz
Width:3.5 in
