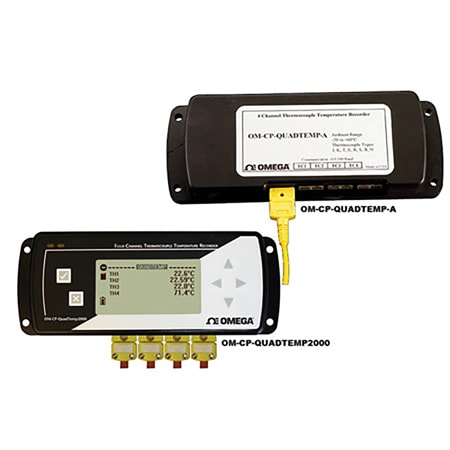

DwyerOmegaOM-CP-QUADTEMP-A-Series
OM-CP-QUADTEMP-A
4 CH THERMOCOUPLE LGR W/AC CE
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:NIST Traceable Calibration
Battery Size and Type:Li-ion
Battery life:up to 18 mo
Data Interface:USB
Data Interface Note:PC serial, USB, RS-232C COM, 115,200 baud
Electrical Connection:Sub-D Female Miniature Connector
External Temperature Resolution:J, K, T, E, n: 0.1°C R, S, B: 0.5°C
Form factor:Handheld/Wall Mount
Height:26 mm
Internal Channel Calibrated Accuracy Note:± 0.5°C
Internal Temperature Resolution:0.05°C
Length:68 mm
Measurement Type:Temperature
Memory:500000
Memory Note:500,000 readings per channel (individual channels can be disabled to increase memory)
Number of Measurements:4
Process Temperature, Max:60 °C
Process Temperature, Min:-20 °C
Real Time Recording:Device may be used with PC to monitor and record data in real time
Relative Humidity, Max:0.95
Relative Humidity, Min:0%
Samples,Max:500000
Sampling Rate:4 Hz (4 updates/second)
Software Compatibility:Windows® XP/VISTA/7 and 8 (32- and 64-bit)
Supply Power Type:Battery
Temperature Accuracy:± 1.5 °C
Temperature Sensor Type:Thermocouple
Thermocouple Resistance, Max:1000 Ω
Time Accuracy:± 1 min/month when RS232C port is not in use
Weight:430 g
Width:183 mm
