DwyerOmegaOM-CP-PULSE101A-Logger

OM-CP-PULSE101A

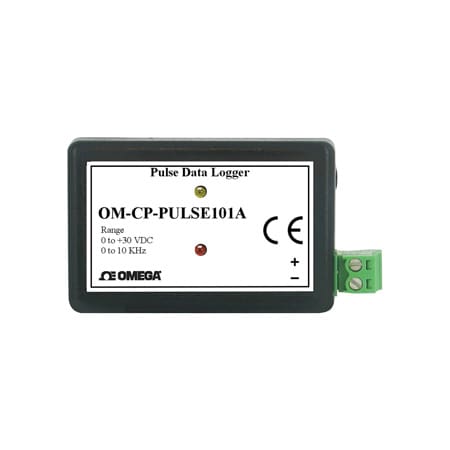

The OM-CP-PULSE101A recording device that senses and records pulses or contact closures from external sources such as transducers, and water meters.

가격: 232,140 원

VAT 10%: 23,214 원

총 금액: 255,354 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Accuracy:± 1 min/month

Accuracy Detail:±1 minute/month at 20°C, stand alone data logging

Battery life:up to 10 yr

Battery Size and Type:3.6V Li-ion

Baud Rate:115200

Data Interface:USB

Display Measuring Units:°C, °F, ft/min, k/h, kts, m/s, mph

Electrical Connection:Removable Screw Terminal

Height:2.5 in

Impedance Input:>60 kΩ

Internal Weak Pull-Up:<60 μA

LED Indicators:Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory; 1 second rate to indicate an alarm condition

Length:0.6 in

Materials:ABS, Aluminum

Memory:500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode

Memory Modes:Yes

Multi Start/Stop Mode Note:To start the device press and hold the pushbutton for 5 seconds, the device has started logging; to stop the device press and hold the pushbutton for 5 seconds while the device is logging, the device has stopped logging

Number of Measurements:1

Operating Temperature, Max:80 °C

Operating Temperature, Min:-40 °C

Protection:An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

Pulse Rates:10 kHz

Pulse Width, Min:≥ 10 µsec

Real Time Recording:The device may be used with PC to monitor and record data in real-time

Relative Humidity:0 to 95% RH non-condensing

Samples,Max:1 sec

Sampling Rate:1 Hz (1 update/second)

Series ID:OM-CP-PULSE101A-Logger

Software:XP SP3/Vista/7 and 8 (32 and 64-bit)

Start Modes:Delayed Start, Immediate Start, Push-button

Supply Power Type:Battery

Voltage Input Range:0 to 30 vdc

Weight:0.9 oz
