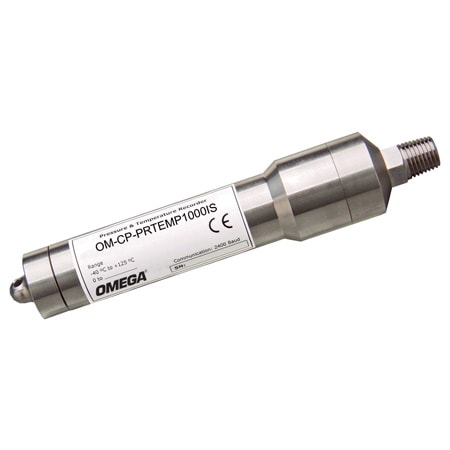

DwyerOmegaOM-CP-PRTEMP1000IS-Series-invalid
OM-CP-PRTEMP1000IS-1-500-A
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Calibration Accuracy : Pressure: 2% FSR, 0.25% @ 25°C typical; Time Accuracy : 1 minute/month at 20°C, (RS-232 port not in use); Pressure Repeatability : ± 0.5% FSR; ± 0.2% typical
Approvals:CE, FM
Battery Size and Type:3.6V Li-ion
Battery life:up to 1 yr
Baud Rate:2400
Calibration:Digital calibration through software and automatically recorded within device
Calibration Accuracy:Temperature : ±0.5°C, Pressure : 2%
Data Interface:USB, RS232
Diameter:33 mm
Frequency Response:Pressure Response Time: 0.1 ms
Humidity Range:0 to 100% RH
Length:163 mm
Materials:Stainless Steel
Measurement Pressure Type:Absolute
Measurement Pressure, Max:500 psi
Measurement Pressure, Min:0 psi
Measurement Type:Pressure, Temperature
Measuring Temperature Range, Max:80 °C
Measuring Temperature Range, Min:-40 °C
Memory:16,383 Readings
Millivolt Range:N/A
Number of Measurements:2
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Pressure Repeatability:± 0.5%
Pressure Sensor Type:Silicon Strain Gage
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Real Time Recording:The device may be used with PC to monitor and record data in real-time
Resolution:Pressure : 0.05 psi, Temperature: 0.1°C
Sampling Rate:0.5 Hz (2 seconds between updates)
Sampling Rate Note:1 reading every 2 seconds, to 1 every 12 hours
Software:Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Start Modes:Delayed Start, Immediate Start
Supply Power Type:Battery
Temperature Sensor Type:Silicon Diode
Time Accuracy:1 minute/month
Weight:338 g
