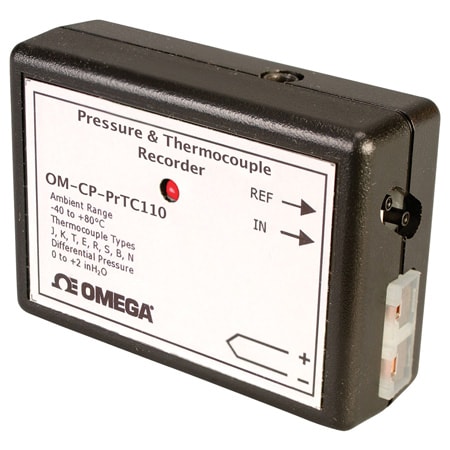

DwyerOmegaOM-CP-PRTC110-Series
OM-CP-PRTC110-2H2O
Differential Pressure and Thermocouple Data Logger
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Thermocouple Accuracy: ±5% FSR max at 25ºC over 1 year
Battery Size and Type:3.6V Li-ion
Battery life:up to 5 yr
Baud Rate:57600
Calibration:Digital calibration through software
Data Format:atm, °C, Date and time, °F, inH2O, inHg, K, kPa, mmHg bar, MPa, Pa, PSIG, °R, Torr
Data Interface:USB
Electrical Connection Note:Thermocouple Connection:Female subminiature thermocouple connector Pressure Connections:REF and IN ports via 1⁄16" ID, 5⁄32" Max OD, polyurethane tubing
Height:0.8 in
Length:1.6 in
Measurement Pressure, Max:4 psi
Measurement Type:Thermocouple, Differential Pressure
Memory Note:10,922 readings per channel; software configurable memory wrap
Number of Measurements:2
Operating Temperature, Max:80 °C
Operating Temperature, Min:-20 °C
Pressure Measurement Range:0 to 2 inH2O
Real Time Recording:The device may be used with PC to monitor and record data in Real-time
Relative Humidity:0 to 95% RH non-condensing
Resolution:Temperature: 0.1°C, Pressure: 0.002 inH2O
Sampling Rate:2 Hz (2 updates/second)
Sampling Rate Note:2 Seconds to 24 hours
Sensor Type:Diode temperature sensor, Piezoresistive Pressure Sensor
Software:XP SP3/Vista/7 and 8
Start Modes:Delayed Start, Immediate Start
Supply Power Type:Battery
Temperature Measurement Range:-20 to 80 °C
Thermocouple Resistance, Max:1000 Ω
Time Accuracy:±1 min/month (at 20 to 30°C)
USB Cable Length:6 ft
Weight:250 g
Width:2.7 in
