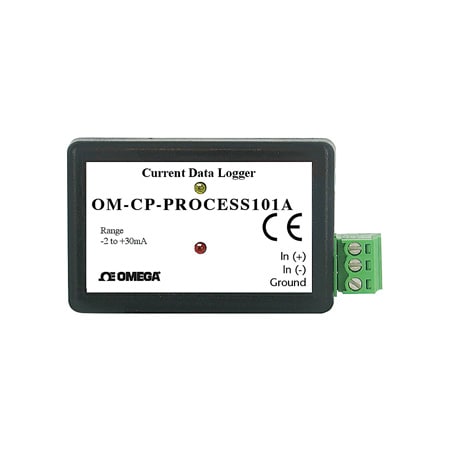

DwyerOmegaOM-CP-PROCESS101A-Series
OM-CP-PROCESS101A-160MA
- 가격
- 428,200 원
- VAT 10%
- 42,820 원
- 총 금액
- 471,020 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm:Programmable high and low limits; alarm is activated when current reaches or exceeds set limits
Baud Rate:115200
Calibration Accuracy:±0.05%
Calibration Note:Digital calibration through software, automatically recorded within device
Conversion Time:133 ms
Current Measurement Range:± 160 mA
Data Interface:USB
Electrical Connection:Removable Screw Terminal
Frequency Rejection:50 to 60 Hz
Height:1.4 in
Housing Depth:1.5 in
Housing Height:2.9 in
Housing Width:5.8 in
Impedance Input:1 Ω, ±1%
Input Control Signal:±160 mA
Input Voltage:0 to 2.5 V
LED Functionality:Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory
Length:0.6 in
Materials:Aluminum, ABS
Measurement Type:Current
Memory:1,000,000 readings
Memory Modes:Yes
Memory Note:1,000,000 readings; software configurable memory wrap 333,000 readings in multiple start/ stop mode
Number of Channels:1
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Overload Protection:0.041666666666667
Programmable Functions:Security
Real Time Recording:The device may be used with PC to monitor and record data in real-time
Relative Humidity:0 to 95% RH
Resolution:5 µA
Sampling Rate Note:4 Hz to 1 reading every 24 hours
Software:XP SP3/Vista/7 and 8
Start Modes:Button Push, Delayed Start, Immediate Start
Supply Power:3.6 V Lithium Battery
Supply Power Note:10 Year Battery Life Typical, at a 15 Minute Reading Rate
Supply Power Type:Battery
Temperature Coefficient:< ±50 ppm/ºC
Time Accuracy:±1 minute/month (stand alone data logging)
Voltage Measurement Range:N/A
Weight:24 g
Width:2.2 in
