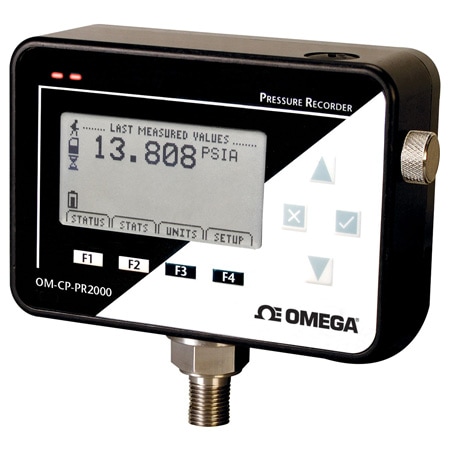

DwyerOmegaOM-CP-PR2000-Series
OM-CP-PR2000-30-A
- 가격
- 2,105,790 원
- VAT 10%
- 210,579 원
- 총 금액
- 2,316,369 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Calibration Accuracy : Pressure: 2% FSR, 0.25% @ 25°C typical; Time Accuracy : ±1 minute/month (at 20° to 30°C)
Approvals:CE
Battery Size and Type:Alkaline AA
Battery life:up to 1 yr
Baud Rate:115200
Calibration:Digital calibration through software and automatically recorded within device
Calibration Accuracy:Pressure : 2%
Data Interface:USB
Diameter:32 mm
Display Size:72 mm (2.8 in)
Display Type:Backlit LCD
Frequency Response:Pressure Response Time: 0.1 ms
Height:84 mm
Humidity Range:0 to 95% RH non-condensing
LED Indicators:Power, Status, Memory
Length:122 mm
Materials:Stainless Steel, Aluminum
Measurement Pressure Type:Absolute
Measurement Pressure, Max:30 psi
Measurement Pressure, Min:0 psi
Measurement Type:Pressure
Memory:262,143 Readings
Memory Note:262,143 total readings; software configurable memory wrap
Millivolt Range:N/A
Number of Measurements:1
Operating Temperature, Max:54 °C
Operating Temperature, Min:-20 °C
Pressure Sensor Type:Silicon Strain Gage
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Resolution:Pressure : 0.002 psi
Sampling Rate:0.5 Hz (2 seconds between updates)
Sampling Rate Note:1 reading every 2 seconds to 1 every 24 hours
Software:Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Start Modes:Delayed Start, Immediate Start
Stop Modes:Adjustable Delay Stop
Supply Power Type:Battery
Time Accuracy:±1 minute/month
Weight:1134 g
