DwyerOmegaOM-CP-PR140-Series

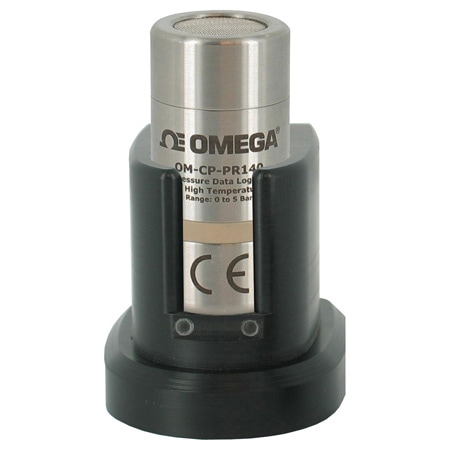

OM-CP-PR140
"HAZ-LITH"RUGGED PRESSURE DATA LOGGER CE
- 가격
- 2,461,820 원
- VAT 10%
- 246,182 원
- 총 금액
- 2,708,002 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Calibration Accuracy : Pressure: ±0.435 psi @ 20 to 140ºC; Time Accuracy : ±1 minute/month at 20ºC; Pressure Repeatability : ±0.5% FSR; ±0.2% typical
Approvals:CE
Battery Size and Type:3.6V Li-ion
Battery life:up to 2 yr
Baud Rate:125000
Calibration:Digital Calibration through Software with Montly Calibration interval
Calibration Accuracy:Pressure: ±0.435 psi
Data Interface:USB
Diameter:25.4 mm
Frequency Response:Pressure Response Time: 0.1 ms
Humidity Range:0 to 100% RH
Length:50.8 mm
Materials:Stainless Steel
Measurement Pressure Type:Absolute
Measurement Pressure, Max:72.5 psi
Measurement Pressure, Min:0 psi
Measurement Type:Pressure
Memory:32,700 Readings
Memory Note:32,700 readings; software configurable memory wrap
Millivolt Range:N/A
Mounting:Flush Mount
Number of Measurements:1
Operating Temperature, Max:140 °C
Operating Temperature, Min:-20 °C
Pressure Repeatability:±0.5%
Pressure Sensor Type:Silicon Strain Gage
Process Connection Size:N/A
Process Connection Type:N/A
Real Time Recording:The device may be used with PC to monitor and record data in real-time
Resolution:Pressure : 0.0015 psi
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 second to 1 every 24 hours
Software:Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Start Modes:Delayed Start, Immediate Start
Stop Modes:Adjustable Delay Stop
Supply Power Type:Battery
Time Accuracy:±1 minute/month
Weight:85 g
