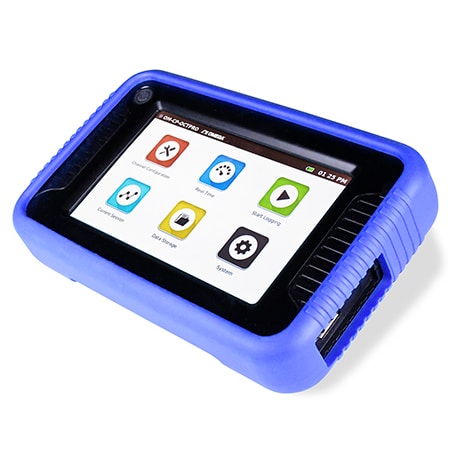

DwyerOmegaOM-CP-OCTPRO-Logger
OM-CP-OCTPRO
8 CH PROGRAMMABLE DATALOGGER
- 가격
- 2,104,360 원
- VAT 10%
- 210,436 원
- 총 금액
- 2,314,796 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
AC Power Plug Type:N/A
Accuracy:± 0.1 %
Accuracy Detail:Current Accuracy: ±0.024 mA Voltage Accuracy: ±0.1 mV, ±0.01 V Thermistor Accuracy: ±0.50% RTD Accuracy: ±0.1 °C Thermocouple Accuracy: J, K, T, E, N: ±0.5 °C R, S, B: ±2.0 °C
Battery Size and Type:3.7V Li-ion
Calibration:Factory calibration is recommended annually
Data Interface:USB
Dimensions Note:6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x 35.8 mm) Data logger only
Display Note:LCD Touchscreen: 5 inch LCD capacitive touchscreen.
Display Type:LCD
Enclosure Ratings:IP20
Frequency Input Range:0 to 25 kHz
Height:6.65 in
Impedance Input:Current Input Impedance: 30Ω,Voltage Input Impedance: 1 GΩ,Frequency Input Impedance: 58 kΩ
Input Control Signal:Millivolt input: -100 to 2450 mV Volt input: -0.5 V to 12.0 V
Input Current:-5 to 50 mA
Input Type:Thermocouple, RTD, Thermistor, Current,Voltage, Digital
Length:1.41 in
Materials:Polycarbonate
Memory:1,000,000 or 5,000,000 Readings
Memory Note:1,000,000 or 5,000,000 Readings
Mounting:Handheld, Tabletop or Wall Mounting
Number of Channels:8
Pulse Input Note:0 to 4,000,000,000 Pulses
Relative Humidity:0 to 95% RH non-condensing
Resolution:0.1 °C
Resolution Note:Current Resolution: 0.0001 mA Voltage Resolution: 0.0001 mV, 0.0001 V RTD Resolution: 0.01 °C Thermisor Resolution: 0.01 °C Thermocouple Resolution: J, K, T, E, N: 0.1 °C R, S, B: 0.5 °C
Sampling Rate:4 kHz
Start Modes:Delayed Start, Immediate Start
Supply Power Note:• Rechargeable 3.7 V Lithium Ion Battery, • Continuous on-screen sampling: 9 hours; Stand-by mode: 100 hours
Supply Power Type:USB
Temperature Measurement Range:J: -200 to 760 °C,K: -270 to 1370 °C,T: -270 to 400 °C,E: -270 to 980 °C,R: -50 to 1760 °C,S: -50 to 1760 °C,N: -270 to 1300 °C,B: 50 to 1820 °C,RTD: -200 to 850 °C,TH 2252Ω, 10KΩ: -25 to 150°C
Thermocouple Type:J, K, T, E, R, S, B, N
Weight:1.3 lb
Width:4.4 in
Wiring/Connector Table:2-, 4-Wire RTD
