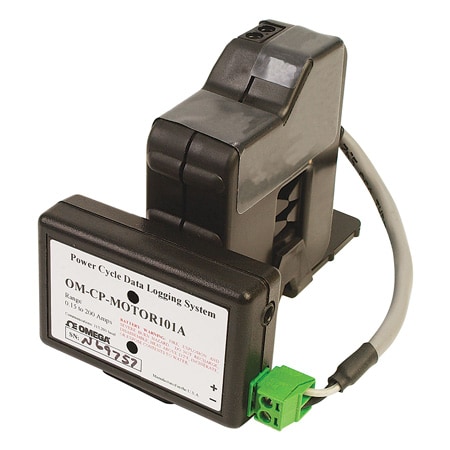

DwyerOmegaOM-CP-MOTOR101A-Series
OM-CP-MOTOR101A-KIT
- 가격
- 602,780 원
- VAT 10%
- 60,278 원
- 총 금액
- 663,058 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Battery Size and Type:3.6V Li-ion
Battery life:up to 10 yr
Baud Rate:115200
Control Output:N.O. 1.0 A @ 30 Vac/Vdc
Current Measurement Range:0.15 to 200 A
Current Switch Dimensions:2.1" x 3.5" x 1.0"
Data Interface:USB
Data Retention:Start and Stop the device multiple times without having to download data or communicate with a PC. Activation: To Start the Device: Press and hold the Pushbutton for 5 seconds, the Green LED will flash During this time; the device has Started Logging
Height:0.6 in
Indicator Type:Red LED, Green LED
Length:1.4 in
Material Construction Option:N/A
Materials:ABS
Measurement Range Note:0.15A (150 mA) fixed (200 mA AC for 50 Hz operation)
Measurement Type:Motor On/Off Status
Memory:406,323 readings
Memory Modes:Yes
Memory Note:406,323 readings; software configurable memory wrap
Number of Measurements:1
Operating Temperature, Max:40 °C
Operating Temperature, Min:-15 °C
Programmable Functions:Security
Real Time Recording:The device may be used with PC to monitor and record data in Real-time
Relative Humidity:10 to 90% RH non-condensing
Sampling Rate:4 Hz (4 updates/second)
Sampling Rate Note:4 Hz to 1 every 24 hr
Sensor Type:Inductive coil
Software:XP SP3/Vista/7 and 8
Start Modes:Delayed Start, Immediate Start, Push-button
Supply Power Type:Battery
Time Accuracy:±1 minute/month (at 20ºC/68ºF, stand alone data logging)
USB Cable Length:6 ft
Weight:113 g
Width:2.5 in
