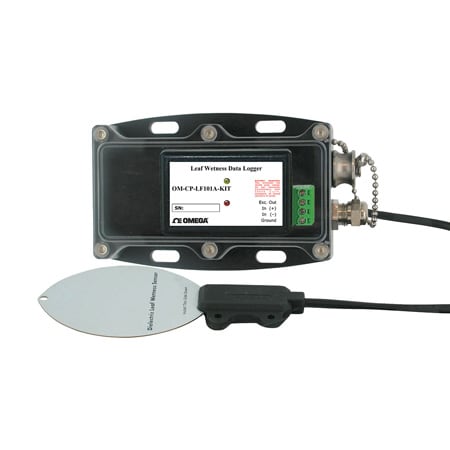

DwyerOmegaOM-CP-LF101A-KIT-Logger
OM-CP-LF101A-KIT
- 가격
- 934,780 원
- VAT 10%
- 93,478 원
- 총 금액
- 1,028,258 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 mV
Accuracy Detail:Specified Accuracy: Nominal range @ 25ºC
Battery Size and Type:3.6V Li-ion
Battery life:10 mo, typical with reading interval of 1 min
Baud Rate:115200
Cable Length:16 ft
Data Interface:USB
Data Retention:Start and Stop the device multiple times without having to download data or communicate with a PC. Activation: To Start the Device: Press and hold the Pushbutton for 5 seconds, the Green LED will flash During this time; the device has Started Logging
Enclosure Ratings:IP65, NEMA Type 4
Height:0.6 in
Indicator Type:Red and Green LEDs
Length:1.4 in
Materials:ABS
Measurement Type:Voltage
Measuring Range:Dry: 266 mV typical, 100% Saturated: 833 mV typical
Memory:1,000,000 readings
Memory Modes:Yes
Memory Note:1,000,000 readings; software configurable memory wrap; 330,000 readings in multiple start/stop
Number of Measurements:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-10 °C
Probe Dimensions Note:4.4" L x 2.3" W x 0.03" D
Programmable Functions:Security
Real Time Recording:The device may be used with PC to monitor and record data in Real-time
Relative Humidity:0 to 100% RH non-condensing
Resolution:Measurement: 50 µV
Response Time:10 ms
Sampling Rate:4 Hz (4 updates/second)
Sampling Rate Note:4 Hz to 1 every 24 hr
Sensor Type:Leaf Wetness Sensor
Sensor/Transmitter Power:2.5 Vdc @ 2 mA to 5 Vdc @ 7 mA
Software:XP SP3/Vista/7 and 8
Start Modes:Delayed Start, Immediate Start, Push-button
Stop Modes:Manual Through Software
Supply Power Type:Battery
USB Cable Length:6 ft
Water Box Dimensions:2.9" H x 5.8" W x 1.5" D
Weight:226 g
Width:2.5 in
