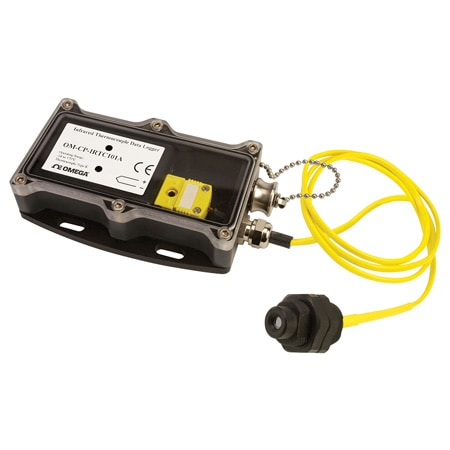

DwyerOmegaOM-CP-IRTC101A-Logger
OM-CP-IRTC101A
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm Note:Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits
Battery Size and Type:3.6V Li-ion
Battery life:up to 10 yr
Data Interface:USB
Data Interface Note:USB (interface cable required); 115,200 baud
Display Type:LED
Electrical Connection:Sub-D Female Miniature Connector
Field of view:0.04236
Form factor:Desktop
Height:16 mm
Infrared Thermocouple Dimensions:3.25 L x 1.80 cm Dia
LED Indicators:Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode; Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition
Length:36 mm
Measurement Type:Temperature
Memory:500000
Memory Modes:Yes
Memory Note:500,000 readings per channel (1,000,000 readings total) software configurable memory wrap 250,000 readings in multiple start/ stop mode
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-18 °C
Process Temperature, Max:80 °C
Process Temperature, Min:-40 °C
Real Time Recording:May be used with PC to monitor and record data in real time
Samples,Max:50000
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 reading every 2 seconds to 1 every 12 hours
Software Compatibility:XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Spectral Response Note:6.5 - 14µ
Spot Size:8 mm (min)
Start Modes:Adjustable Delay Start, Immediate Start, Push-button
Stop Modes:Adjustable Delay Stop, Manual Through Software
Supply Power Type:Battery
Supply Voltage:9 Vdc
Temperature Accuracy:± 2.5 °C
Temperature Resolution:0.1 °C
Temperature Sensor Type:Thermocouple Type K
Thermocouple Resistance, Max:3000 Ω
Time Accuracy:± 1 minute/month
Weight:24 g
Width:56 mm
