DwyerOmegaOM-CP-HITEMP140-M12-Logger
OM-CP-HITEMP140-M12

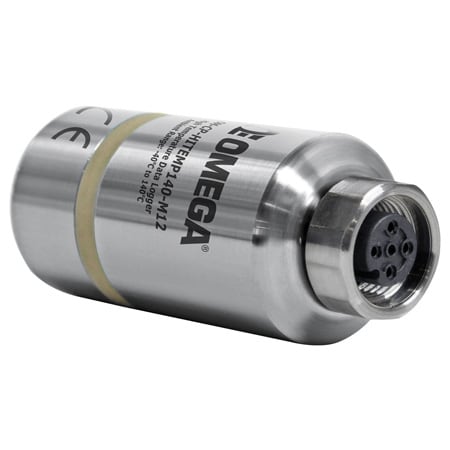

High Temperature Data Logger With Built-In M12 Connector
- 가격
- 1,884,150 원
- VAT 10%
- 188,415 원
- 총 금액
- 2,072,565 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Battery Size and Type:3.6V Li-ion
Battery life:up to 2 yr
Calibrated Accuracy Temperature Range:-200 to 265 °C
Calibration:Digital calibration through software
Data Interface:USB
Data Interface Note:OM-CP-IFC400 or OM-CP-IFC406 USB docking station required; 125,000 baud
Diameter:24.6 mm
Electrical Connection:M12 4 pin Female
Enclosure Ratings:IP40
Form factor:Handheld
Height:54.5 mm
Materials, Wetted:Stainless Steel
Measurement Type:Temperature
Memory:43690
Number of Measurements:1
Operating Temperature, Max:140 °C
Operating Temperature, Min:-40 °C
Readings in Trigger Settings Mode:18,724 readings
Real Time Recording:May be used with PC to monitor and record data in real time
Relative Humidity, Max:1
Relative Humidity, Min:0%
Samples,Max:43690
Sampling Rate:4 Hz (4 updates/second)
Sampling Rate Note:4 readings per second up to 1 reading every 24 hours
Software Compatibility:XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Start Modes:Adjustable Delay Start, Immediate Start
Stop Modes:Adjustable Delay Stop, Manual Through Software
Supply Power Type:Battery
Temperature Accuracy:± 0.1 °C
Temperature Measurement Note:18 to 400 Ω; -200 to 850°C (-328 to 1562°F) (probe dependent)
Temperature Measurement, Max:850 °C
Temperature Measurement, Min:-200 °C
Temperature Resolution:0.01 °C
Temperature Resolution Note:0.0001 Ω; 0.01°C (0.018°F) (probe dependent)
Temperature Sensor Type:RTD
Temperature Sensor Type Note:Pt100 RTD probe with M12 connector (probe sold separately)
Time Accuracy:± 1 minute/month at 25°C (77°F)
Weight:85 g
