DwyerOmegaOM-CP-ETR101A-KIT-Series
OM-CP-ETR101A-KIT

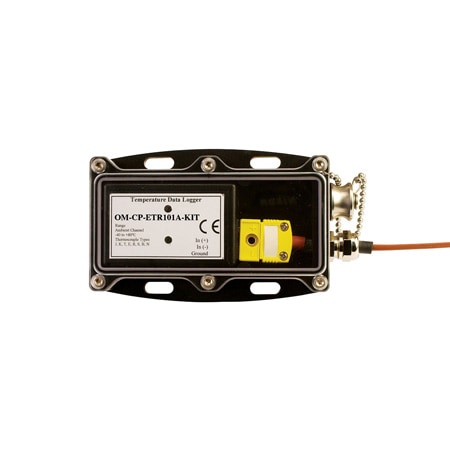

Thermocouple Temperature Data Logging System with Waterproof Enclosure and Remote Probe
- 가격
- 819,070 원
- VAT 10%
- 81,907 원
- 총 금액
- 900,977 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Waterproof NEMA 4 (IP65) Enclosure
Alarm Delay:Programmable time delay
Battery Size and Type:3.6V Li-ion
Battery life:up to 10 yr
Cable Length:762 mm
Data Interface:USB
Data Interface Note:USB (interface cable required); 115,200 baud
Electrical Connection:Miniature Female Thermocouple Connector Non-Window
Form factor:Benchtop
Height:16 mm
Internal Channel Calibrated Accuracy:± 0.25°C
LED Indicators:Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition
Length:36 mm
Measurement Type:Temperature
Memory:500000
Memory Modes:Yes
Memory Note:500,000 readings
Number of Measurements:2
Operating Temperature, Max:80 °C
Operating Temperature, Min:-20 °C
Probe Diameter:3.2 mm
Probe Length:153 mm
Process Temperature, Max:80 °C
Process Temperature, Min:-40 °C
Real Time Recording:The device may be used with PC to monitor and record data in real-time
Remote Channel Accuracy:± 2.0°C
Remote Channel Temperature:-270 to 1070 °C
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 reading every second to 1 every 24 hours.
Software Compatibility:Windows® XP/VISTA/7 and 8 (32- and 64-bit)
Start Modes:Adjustable Delay Start, Immediate Start, Push-button
Stop Modes:Adjustable Delay Stop, Manual Through Software
Supply Power Type:Battery
Temperature Accuracy:± 0.1 °C
Temperature Sensor Type:Thermocouple
Temperature Sensor Type Note:Thermocouple
Thermocouple Resistance, Max:100 Ω
Time Accuracy:± 1 minute/month
Waterbox Depth:27 mm
Waterbox Height:87 mm
Waterbox Width:73 mm
Weight:425 g
Width:56 mm
Wire Gauge:24 AWG
