DwyerOmegaOM-2628
OM-2628-C6

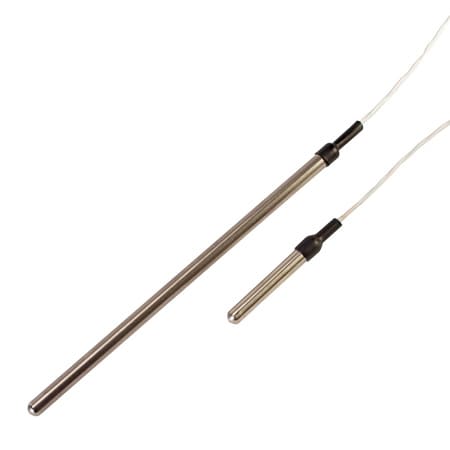

Integrated Circuit IC Temperature Probe
- 가격
- 222,420 원
- VAT 10%
- 22,242 원
- 총 금액
- 244,662 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Calibration Error @ 25°C (77°F) 0.3°C (0.54°F) typical, 0.5°C (0.9°F) maximum TA = 0 to 70°C (32 to 158°F): Error Over Temperature: 0.4°C (0.72°F) typical, 0.8°C (1.4°F) maximum Nonlinearity: 0.05°C (0.09°F) typical, 0.15°C (0.27°F) maximum TA = -25 to 105°C (-13 to 221°F): Error Over Temperature: 0.5°C (0.9°F) typical, 1°C (1.8°F) maximum Nonlinearity: 0.1°C (0.18°F) typical, 0.35°C (0.63°F) maximum
Cable Length:36 in
Forward Voltage:± 44 V
Insulation:PFA
Linearity:0.15°C
Linearity Note:Excellent Linearity: 0.15°C (0.27°F) Maximum [0 to 70°C (32 to 158°F)]
Long Term Stability:0.1°C/month
Long Term Stability Note:0.1°C/month (0.18°F) typical
Nominal Current Output:298.2 µA
Nominal Current Output Note:Nominal Current Output @ 25°C (298.2 K): 298.2 µA typical
Package Temperature, Max:125 °C
Package Temperature, Min:-45 °C
Probe Diameter:0.25 in
Probe Length:6 in
Probe Type:Integrated Circuit Temperature Probes
Process Temperature, Max:105 °C
Process Temperature, Min:-25 °C
Repeatability:0.1°C
Repeatability Note:0.1°C (0.18°F) typical
Reverse Voltage:± 20 V
Reverse Voltage Note:Reverse Voltage (- to +) Lead Temperature: 20V maximum
Soldering:572 °C
Soldering Note:Soldering, 10 Seconds: 572°C (1062°F) maximum
Temperature Coefficient:1 µA/°C
Temperature Coefficient Note:1 µA/°C typical
Temperature Probe Style:Immersion Probe
Temperature Sensor Type:Thermistor
