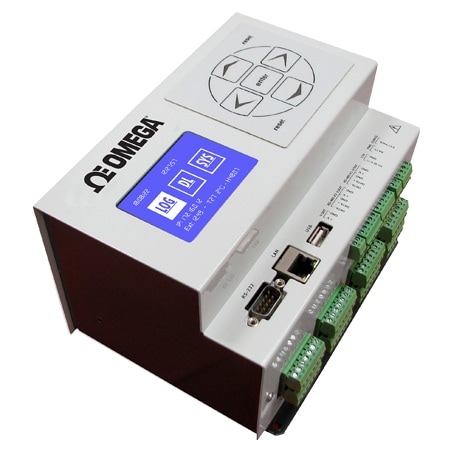

DwyerOmegaOM-240-Logger
OM-240
24-CH ETHERNET DATA LOGGER
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm Note:Max Input Voltage: 24V (max current: 10mA), Min Input Voltage: 5V (max current: 2mA), Measurement Rate: max frequency 1 kHz, Accuracy: 0.1 Hz, Two opto-isolated digital inputs individually selectable for switch closure. One relay output (for alarm, etc.): volt-free closure (low voltage 30V, 2A)
Baud Rate:9600 to 115200
CPU and Memory Processor:ARM Cortex-M3 MCU with 1 MB Flash, 120 MHz CPU, ART Accelerator, Ethernet
Configuration:WindowsPC Software, Independent OS Platform
Current Accuracy:0.0001
Current Measurement Range:4 to 20 mA
Current, Max:5 A
Data Interface:Ethernet, RS485, RS232, USB
Data Interface Note:LAN Ethernet: 10/100 Mbps, RJ45, Isolated RS232: 9-pin, DE9. DCE port for optional GSM/GPRS modem connection Baud Rates: selectable from 9600 bps to 115.2 kbps Default Format: 8 data bits; 1 stop bits; no parity USB: USB 2.0 pen drive only (FAT 32), 5 V 200 mA RS485#1 AND RS485#2 Connection: 5 screw clamp port for max. No.254 Modbus RS485 digital bus sensors Communication Interface: RS485 - Optoisolated Communication Protocol: MODBUS RTU
Display:LCD
Display Note:Small backlight graphic LCD 128 x 64 dpi with membrane keyboard for the minimal local management without the PC. Keyboard for starting a data acquisition scan, sequential display of the last stored readings for each channel (sensor ID, converted unit reading, unit of measure), device status, data download and firmware/Web pages update by USB pen drive, safe mode (back-up/format/restore internal SD card).
External Sensor Range:Thermocouple: K -200 to 1370°C, B 600 to 1820°C, J -200 to 1200°C, T -200 to 400°C, E -200 to 1000°C, R -20 to 1760°C, N -260 to 1300°C, S -20 to 1760°C, Thermistor: -50 to 150°C
Height:9.09 in
Impedance Input:20 MΩ
Input Noise Voltage:5.42 µV pp
Input Type:External
Length:4.61 in
Measurement Type:Current, Strain, Temperature, Voltage
Memory:1 MB RAM, 2 GB SD card
Memory Note:2 GB SD card for data (about 5 Mega data points) and Web pages
Number of Measurements:24
Operating Temperature, Max:60 °C
Operating Temperature, Min:-30 °C
RTD Type:100/200/500/1000Ω Pt sensor
Relative Humidity:80% RH
Resolution Note:Thermocouple Resolution: 1 µV at FS for ± 10 mV range; 10 µV at FS for ± 100 mV range; 100 µV at FS for ± 1 V range, Voltage Resolution: ± 10 mV: 1 µV at FS, ± 100 mV: 10 µV at FS, ± 1 V: 100 µV at FS, ± 10 V: 10 mV at FS
Samples,Max:5M Samples, Interval 1 Sec up to 1 Week
Sensor Type:Thermocouple, RTD, Thermistor
Software Packages:Acquisition Time Interval: Selectable from 1 second up to 1 week (depends on the number of channels acquired) FTP client: To send data/alarms on an FTP server (SFTP not supported) MAIL to send data/alarm: To max 5 email address (SMTPS / SSL not supported) SMS to Send Alarms: To max 5 telephone numbers Data Download: (measure, logs) in .csv file (compatible with Microsoft Excel) Virtual Channels Management: For Math operations between channels
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:10 to 30 Vdc (reverse polarity protected), max 5A, RTD Power Supply: 1.2mA, Thermistor Power Supply: 0.05mA, 0.1mA, 1.2mA, Voltage Power: 5V, 10V, 20V, 24V DC*, Current Power: 10V, 24V DC*, Wheatstone Bridge Power Supply: ± 10 mV/V, External Rechargeable Batteries: 12 Vdc nominal, Switched Output Power Supply: The voltage ‘V OUT’ is switched on and off under program control. V OUT is the unregulated input power supply ‘V IN’ (2 A Max)
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Temperature Accuracy:Thermocouple: K: ± 1,99 °C, B: ± 1,22 °C, J: ± 1,04 °C, T: ± 1,99 °C, E: ± 0,93 °C, R: ± 1,64 °C, N: ± 1,24 °C, S: ± 1,64 °C, RTD: 0.17%, Thermistor: -50 to 0°C: ± 2 °C, 0 to 150°C: ± 1 °C
Temperature Sensor Drift:< 10 ppm/°C, range -30 to 70°C
Thermistor Type:3000 Ω @25 °C, NTC
Thermocouple Type:J, K, T, E, R, S, B, N
Voltage Accuracy:0.01%, On-Board: ± 1%, Wheatstone Bridge: 0.01%
Voltage Measurement Range:± 10 mV, ± 100 mV, ± 1 V, ± 10 V, Wheatstone Bridge: ± 10 mV/V
Weight:2.16 lb
Width:5.43 in
