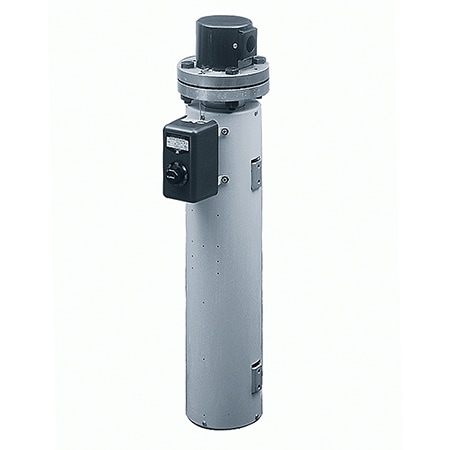

DwyerOmegaNWHOR-NWHORB
NWHOR-03-006P-E1/480/3P
Heavy Oil and Fuel Oil Applications(Baffled)
- 가격
- 10,936,700 원
- VAT 10%
- 1,093,670 원
- 총 금액
- 12,030,370 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:UL, CSA and Other Third Party
Cooling Type:N/A
Diameter:3 in
Enclosure Panel Type:General Purpose
Heater Length:55.4375 in
Heater Power:6 kW
Materials:Carbon Steel
Mounting:With Side Mounted Thermostat
Mounting Holes Center Length:39 in
Number of Circuits:1
Number of Heating Elements:3
Number of Phases:3
Operating Temperature, Max:250 °F
Operating Temperature, Min:60 °F
Pipe Inlet and Outlet Gap:45 in
Power Density:15 W/in²
Process Connection Size:1 in
Process Connection Type:NPT Male
Sheath Diameter:0.475 in
Sheath Material:Steel
Supply Voltage:480 Vac
Vessel Material Note:Carbon Steel Pipe Body, 150 lb
Weight:94 lb
