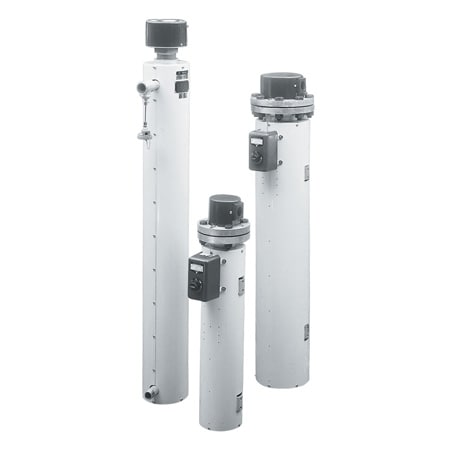

DwyerOmegaNWHOIS-HEATER
NWHOIS-03-002P-E4/240V/3P
Corrosive Oil and Highly Corrosive Solution Applications
- 가격
- 19,828,910 원
- VAT 10%
- 1,982,891 원
- 총 금액
- 21,811,801 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:UL, CSA and Other Third Party
Cooling Type:N/A
Diameter:3 in
Enclosure Panel Type:Moisture Resistant
Heater Power:2 kW
Height:32.9375 in
Materials:304 Stainless Steel
Mounting:With Side Mounted Thermostat
Mounting Holes Center Length:16 1/2 in
Number of Circuits:1
Number of Heating Elements:3
Number of Phases:3
Operating Temperature, Max:250 °F
Operating Temperature, Min:60 °F
Pipe Inlet and Outlet Gap:22.5 in
Power Density:15 W/in²
Process Connection Size:1 in
Sheath Diameter:0.475 in
Sheath Material:Incoloy
Supply Voltage:240 Vac
Vessel Material Note:3 inch, 150 lb 304 passivated stainless steel vessel, 3 INCOLOY elements (15 W/In2 ) with side mounted thermostat (60 to 250°F) — 1" NPT pipe inlet and outlet
Weight:70 lb
