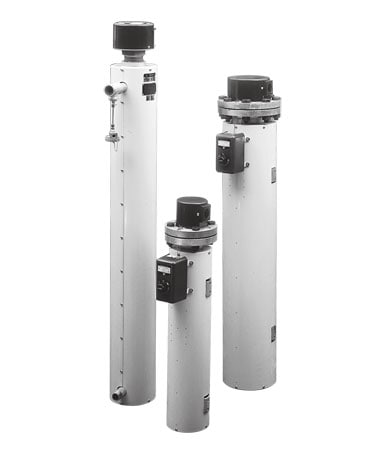

DwyerOmegaNWHIS-HEATER
NWHIS-03-012P-E4/480/3P
Pure Water and Mildly Corrosive Solution Applications
- 가격
- 27,100,450 원
- VAT 10%
- 2,710,045 원
- 총 금액
- 29,810,495 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Applications:Clean Water and Purified Solutions, Heating Equipment, Heating Gases, Oils, Steam
Approvals:UL, CSA and Other Third Party
Cooling Type:N/A
Diameter:3 in
Enclosure Panel Type:Moisture Resistant
Heater Power:12 kW
Height:42.9375 in
Materials:304 Stainless Steel
Mounting:With Side Mounted Thermostat
Mounting Holes Center Length:26 1/2 in
Number of Circuits:1
Number of Heating Elements:3
Number of Phases:3
Operating Temperature, Max:250 °F
Operating Temperature, Min:60 °F
Pipe Inlet and Outlet Gap:32.5 in
Power Density:45 W/in²
Process Connection Size:1 in
Sheath Diameter:0.475 in
Sheath Material:Incoloy
Supply Voltage:480 Vac
Vessel Material Note:150 lb, 304 Passivated Stainless Steel Vessel, 3 INCOLOY Elements (45 W/in2 ) with Side Mounted Thermostat (60 to 250°F)—1 NPT Pipe Inlet and Outlet
Weight:80 lb
