DwyerOmegaSeries-MTL5541

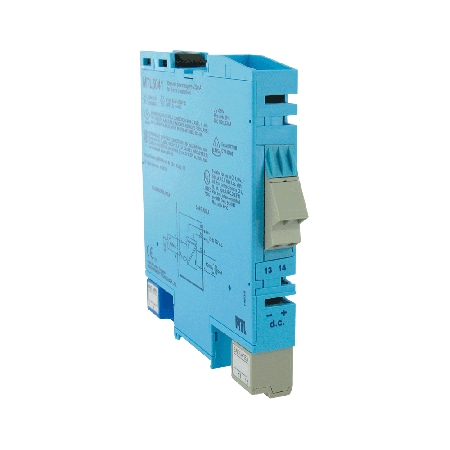

MTL5541
GALVANIC BARRIER
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 15 µA
Applications:Fluid Measurement and Control, Industrial and Manufacturing
Compliance:FM, UL
Current Sink, Max:600 Ω max
Electrical Safety:Vo= 28 V Io= 93 mA Po= 651mW Um= 253 RMS or DC. Weight: 5.3 oz (150 g)
Input Control Signal:16.2 Vdc
Input Type:mA
Isolation:250 V RMS, tested at 1500 V RMS minimum, between safe-area and hazardous-area terminals; 50 V between safe-area circuits and power supply
LED Indicators:Green: Power indication
Load Resistance:0 to 360Ω @ 24 mA / 0 to 450Ω @ 20 mA
Mounting:T-section 35 mm DIN rail to EN 50022
Operating Temperature, Max:140 °F
Operating Temperature, Min:-6 °F
Output Detail:Signal range: 4-20 mA; Under/over-range: 0-24 mA
Output Resistance:>1 MΩ
Output Signal:Current
Power Consumption:1 W
Relative Humidity:5 to 95% RH
Response Time:50 µs
Response Time Note:Settles to within 10% of final value within 50 µs
Storage Temperature, Max:176 °F
Storage Temperature, Min:-40 °F
Supply Power Type:DC
Supply Voltage:20 to 35 Vdc
Temperature Drift:< 0.8µA/°C
Terminal block:up to 2.5 mm²
Weight:5.3 oz
