DwyerOmegaAlta-Air-Pres
MNS2-9-W2-PS-DP-LPO

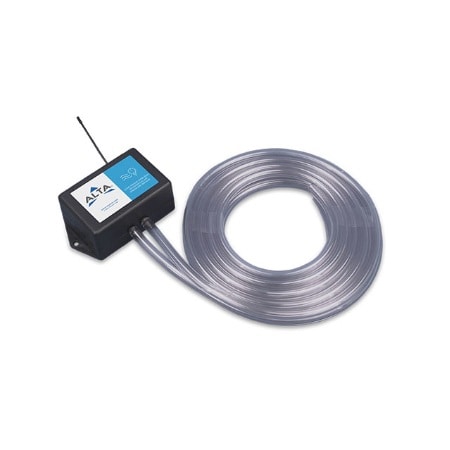

ALTA Wireless Differential Air Pressure Sensor (900 MHz)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 3 %
Accuracy Detail:Pressure: 3% of reading +/- 0.1 Pa
Approvals:CE, FCC
Approvals Note:FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1
Battery life:up to 12 yr
Calibration:Air, N2
Data Interface:Wireless
Form factor:General Purpose
Frequency:900 MHz
Height:2.11 in
Input Range:-500 to 500 Pa
Length:1.495 in
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corosisve Dry Gasses, Oxygen
Memory:Upto 3200 sensor messages
Number of Channels:1
Operating Temperature Note:-18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Power Consumption:22.6 mA
Power Consumption Note:Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA
Relative Humidity:40°C dew point
Repeatability:Temperature: ±0.1°C
Resolution:Temperature: 0.1°C
Sensor Type:Air Pressure
Supply Power Note:DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation
Supply Power Type:DC/Battery
Supply Voltage:2.0 to 3.8 Vdc
Weight:3.7 oz
Width:3.876 in
