DwyerOmegaAlta-Water-Detect
MNS2-9-IN-WS-WP-L03

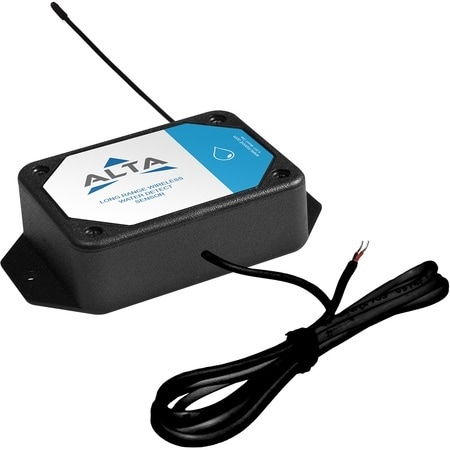

ALTA Industrial Wireless Water Plus Detection Sensor (900 MHz) - 3 ft lead
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:N/A
Approvals:CE, FCC, UL
Approvals Note:FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432)
Battery life:up to 10 yr
Cable Length:3 ft
Data Interface:Wireless
Electrical Connection:Pigtail Leads
Enclosure Ratings:NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X
Form factor:General Purpose
Height:2.316 in
Length:1.378 in
Measurement Type:Water Detection
Media Compatibility:Water
Memory:Upto 512 sensor messages
Number of Channels:1
Operating Temperature Note:-18°C to 55°C (0°F to 130°F) using alkaline
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Power Consumption:22.6 mA
Power Consumption Note:Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA
Sensor Note:Detection Wires: High Impedance; Time: 30 seconds
Supply Power Note:DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation
Supply Power Type:DC/Battery
Supply Voltage:2.0 to 3.8 Vdc
Weight:4.7 oz
Width:3.701 in
