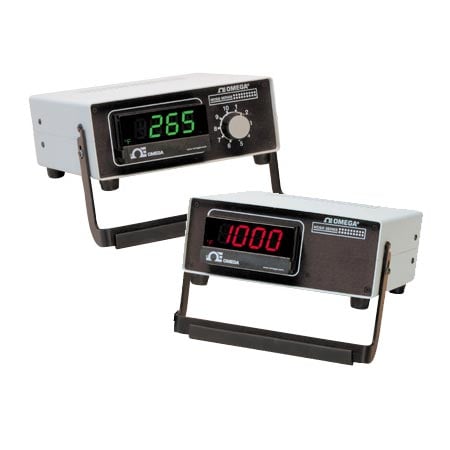

DwyerOmegaMDSi8-MDSSi8
MDSSI8-RTD-EIT-AL
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual slope
Accuracy:± 0.4 °C
Accuracy Detail:RTD (Pt, 0.00385, 100, 500, 1000 Ω) : 0.4°C, RTD (Pt, 0.00392, 100, 500, 1000 Ω) : 0.4°C
Additional Features 1:Benchtop Enclosure
Common Mode Rejection:120 dB
Control Output:2 SPDT Relay
Current Measurement Range:0 to 20 mA
Data Interface:RS232, RS422, RS485
Data Interface Note:RS232/RS422/RS485: Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status Selectable from menu; both ASCII and MODBUS protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status RS485: Addressable from 0 to 199
Decimal Selection:0, 0,001, 0,01, 0,1
Digital Filter:Programmable
Display Color:Red, Green, Amber
Display Size:10.2 mm (0.40 in)
Display Type:4 Digit, 9 Segment LED
Display Type Note:4-digit, 9-segment LED, 10.2 mm (0.40") i32, i16, i16D, i8DV: 21 mm (0.83") i8: 10.2 mm (0.40") and 21 mm (0.83"), i8DH—GREEN, AMBER, and RED programmable colors for process variable, setpoint and temperatureunits
Electrical Connection:Sub-D Female Miniature Connector
Electrical Connection Note:DB-9 connector on rear panel; optional alarm 1 and 2 (programmable)
Form factor:1/8 DIN
Frequency:50 to 60 Hz
Impedance Input:10 MΩ for 100 mV, 1 MΩ for 1 or 10 Vdc
Input Configuration:Single-ended
Input Type:RTD
Normal Mode Rejection:60 dB
Number of Inputs:1
Offset Adjustment:-1999 to +9999
Output Detail:Optional Alarm 1 and 2 (Programmable) Type: Form “C” SPDT relays Operation: High/low, above/below, (limited output to 30 Vrms only) band, latch/unlatch, normally open/normally closed and process/deviation; front panel configurations Optional Analog Output (Programmable): Non-isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only). Accuracy is ± 1% of FS when following conditions are satisfied. 1) Input is not scaled below 1% of input FS 2) Analog output is not scaled below 3% of output FS ;
Polarity:Unipolar
Reading Rate:3 samples/sec
Resolution:1°/0.1°; 10 µV process
Set Point Adjustment:-1999 to 9999 counts
Span Adjustment:0.001 to 9999 counts, programmable
Step Response:0.7 sec for 99.9%
Supply Voltage:90 to 240 Vac
Temperature Measurement Range:RTD (Pt, 0.00385, 100, 500, 1000 Ω) : -200 to 900°C, RTD (Pt, 0.00392, 100, 500, 1000 Ω) : -200 to 850°C
Temperature Stability:0.04°C/°C
