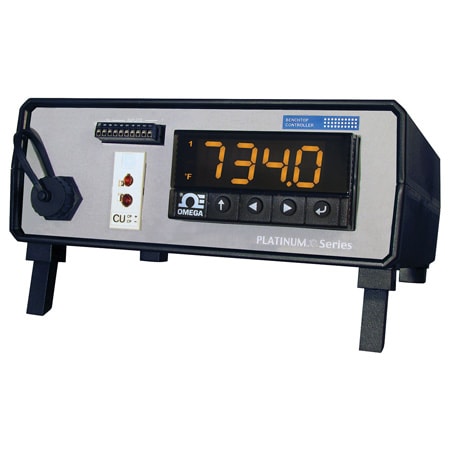

DwyerOmegaMDS8PT

MDS8PT-330

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

A/D Conversion:24-bit sigma delta

Accuracy:0.03 % FS

Additional Features 1:Programmable 3 Color Display

CMRR:120 dB

Configuration:Differential

Control Output:2 SPDT Relay

Data Interface:USB

Decimal Selection:0,001, 0,01, 0,1, None

Decimal Selection Note:None, 0.1 for temperature; none, 0.1, 0.01 or 0.001 for process

Digital Filter:Programmable

Display Size:21 mm (.82 in)

Display Type:4 Digit LED

Display Type Note:4 or 6 digit, 9-segment LED, 21 mm (0.83") GREEN, AMBER, and RED programmable colors for process variable, set point and temperature units

Form factor:Benchtop

Frequency:50/60 Hz

Input Current:4 to 20 mA, 0 to 24 mA

Input Type:Thermocouple, RTD, Thermistor, Current, Voltage

Input Voltage:-100 to 100 mV, -1 to 1 V, -10 to 10 Vdc

Measurement Type:Temperature, Current, Voltage, Differential Voltage

Measuring Range:Process Voltage: +100 mV, ±1, +10 Vdc;Process Current: Scalable within 0 to 24 mA;;Thermocouple:;Type J: -210 to 760°C;Type K: -270 to -160°C and -160 to 1372°C;Type T: -270 to -190°C and -190 to 400°C;Type E: -270 to -220°C and -220 to 1000°C;Type R: -50 to 40°C and 40 to 1768°C;Type S: -50 to 100°C and 100 to 1768°C;Type B: 100 to 640°C and 640 to 1820°C;Type C: 0 to 2320°C;Type N: -250 to -100°C and -100 to 1300°C;Type L: -200 to 900°C;;RTD:;Pt, 0.00385, 100, 500, 1000 Ω: -200 to 900°C;Pt, 0.00392, 100, 500, 1000 Ω: -200 to 850°C;;Thermistor:;2252 Ω: -40 to 120°C;5K Ω: -30 to 140°C;10K Ω: -20 to 150°C

Number of Inputs:1

Output Detail:Optional Alarm 1 and 2 (Programmable) Type: Form “C” SPDT relays Operation: High/low, above/below, limited output to 30 Vrms, 60 Vdc max, band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurations Optional Analog Output (Programmable): Isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only). Accuracy is ± 1% of FS when following conditions are satisfied. 1) Input is not scaled below 1% of input FS 2) Analog output is not scaled below 3% of output FS

Polarity:Bipolar

RTD Input Range:100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curve

Resolution:Temperature :1° /0.1° ; process : 10 µV

Set Point Adjustment:Menu Configurable

Span Adjustment:0.001 to 9999 counts

Step Response:0.7 sec for 99.9%

Supply Power Type:AC

Supply Voltage:90 to 240 Vac

Temperature Stability:RTD: 0.04°C/°C ;TC@ 25°C (77°F): 0.05°C/°C ;Cold Junction Compensation Process: 50 ppm/°C

Thermal Effects:-9999 to +9999

Thermistor Input Range:2252 Ω, 5K Ω, 10K Ω

Thermocouple Type:J, K, T, E, R, S, B, C, N, L
