DwyerOmegaSeries-MDS
MDS-2

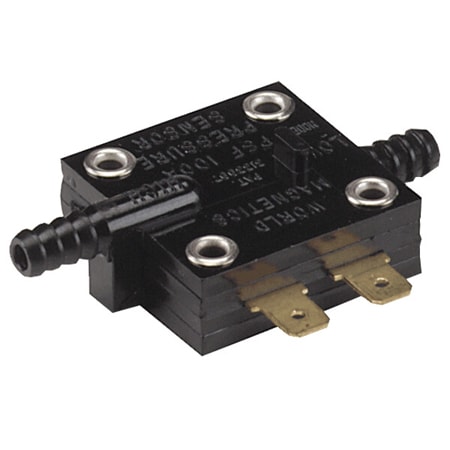

Miniature pressure switch, set point 1.5" H2O.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 16 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Fluid Measurement and Control
Electrical Connection:Spade Lugs
Materials:Polycarbonate, Polyurethane
Measurement Pressure, Max:1.5 inH₂O
Media Compatibility:Consult Factory
Operating Temperature, Max:150 °F
Operating Temperature, Min:40 °F
Operating Voltage Note:AC/DC - 30 V or less with resistive load.
Operating Voltage, Max:30 Vac/Vdc, 30 V
Process Connection Note:Two barbed ports for use with 1/8˝-3/16˝ ID tubing
Process Connection Size:3/16 in
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 8 psi
Switch Note:SPST normally open, Gold contact switch providing maximum 40 mA resistive load allowing for life in excess of 20 million cycles
Switch Rating:40 mA
Switch Type:SPST
Weight:10 g
