DwyerOmegaMDM300
MDM300-IS

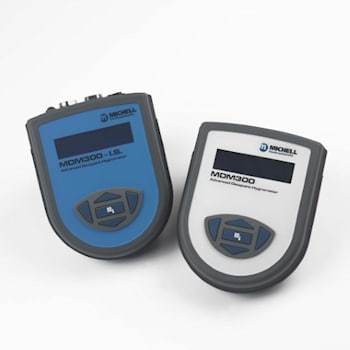

HYGROMETER MDM300IS WITH CERTIFICATION
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 4 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:± 1 °C (± 1.8 °F)
Accuracy Detail:±1 °C from -60 to +20 °Cdp (-76 to +68 °Fdp), ±2 °C from -100 to -60 °Cdp (-148 to -76 °Fdp), ±0.2 °C (0.3 °F)
Analog Input Note:4 to 20 mA external input selectable as either dew point, temperature or pressure
Applications:Air, Air Dryers, Air or Gasses, Clean Rooms, Compressor Control, Flow Measurement, Gases, HVAC, Mechanical Structures, Natural Gas Compressors, Oil and Gas, Pipeline Measurements, Plastic Extruders, Plastic Forming, Plastic Molding, Pneumatic Systems, Power Plants & Boilers, Product Quality Assurance, Steam, Temperature Maintenance, Water
Battery life:24 hr
Battery Size and Type:NiMh
Calibration Note:For Spot Checks -70 to +20 °Cdp (-95 to +68 °Fdp), For Online Analysis -100 to -70 °Cdp (-148 to -95 °Fdp)
Compliance Note:ATEX/UKCA: II 1G Ex ia IIC T4 Ga (-20 °C to +50 °C) IECEx: Ex ia IIC T4 Ga (-20 °C to +50 °C) TR CU Ex: 0Ex ia IIC T4 Ga cQPSus: Class I, Division 1, Groups A B C D, T4 Class I, Zone 0, AEx/Ex ia IIC Ga T4 (-20 °C to +50 °C)
Data Interface:Bluetooth
Data Interface Note:(Wireless) BluetoothTM range up to 5 m (16 ft)
Data Logging:8 MB for 5 to 60 s logging interval
Display Type:LCD
Enclosure Material:High Impact Polyamide with Steel Fiber
Enclosure Ratings:IP66, NEMA Type 4
Flow Rate Note:Flow across sensor: 0.2 to 0.5 Nl/min
Materials, Wetted:316L Stainless Steel, Borosilicate, Ceramic, PTFE
Measurement Resolution:Better than 0.1 °Cdp (0.2 °Fdp)
Operating Humidity:0 to 100% RH
Operating Pressure, Max:35 MPa
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Response Time:T95 in ≤30 minutes to -60 °C (-76 °F) dew point
Series ID:MDM300
Storage Temperature, Max:50 °C
Storage Temperature, Min:-20 °C
Supply Voltage:4.8 Vdc
Temperature Measurement Range:-20 to 50 °C
Weight:1.5 kg
