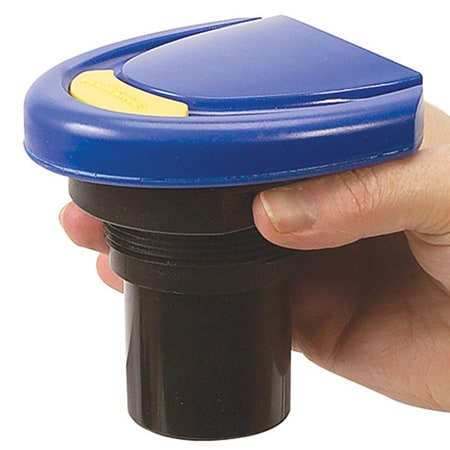

DwyerOmegaLVU2700-Series
LVU2732
ULTRASONIC LEVEL TRANSMITTER
- 가격
- 2,188,150 원
- VAT 10%
- 218,815 원
- 총 금액
- 2,406,965 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Beam Width:3 in
Cable Type:Insulated Shielded
Configuration:USB PC Windows®USB 2.0 Memory: Non-volatile. The level sensor is configurable via our free PC software download and USB adaptor. The sensors are offered with and without USB connectors. Connectors can be used to configure any compatible level product. Download your free copy
Data Interface:USB
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4X
Height:5.5 in
Insulation:Polyurethane
Length:5.2 in
Loop Resistance:500 Ω @ 24 Vdc
Materials:FKM, Fluoroelastomer, Polycarbonate, Polyvinylidene, Fluoride
Measuring Range, Max:32.8 ft
Measuring Range, Min:8 ft
Media Compatibility:Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids
Memory:Non - Volatile
Number of Wires:2
Operating Pressure, Max:30 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-35 °C
Output Signal:Current
Process Connection Size:2 in
Process Connection Type:NPT Male
Process Temperature, Max:60 °C
Process Temperature, Min:-20 °C
Resolution:0.079 in
Signal fail-safe:4 mA, 20 mA, 21 mA, 22 mA or hold last
Signal invert:4 to 20 mA or 20 to 4 mA
Temperature Compensation:Automatic
Width:4.1 in
