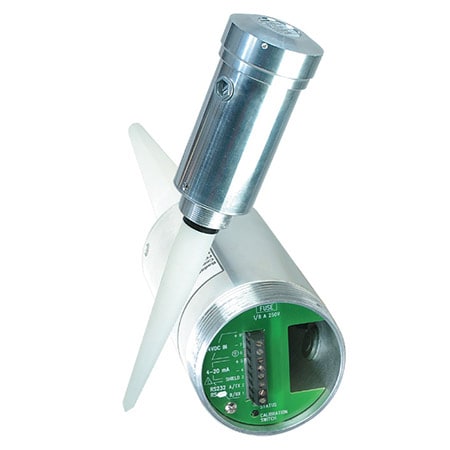

DwyerOmegaLVRD500
LVRD503-RS485
2" NPT, 10" to 100", RS485
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Antenna Diameter:4 in
Antenna Length:8.5 in
Approvals:FCC
Approvals Note:FCC Part 15—low-power communication device
Configuration:Push Button
Data Interface:RS485
Device Class:Class II
Electrical Connection:1/2 in NPT
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4
Frequency:5.8 GHz
Material Construction Option:N/A
Materials:316 Stainless Steel, Aluminum
Measurement Type:Liquid
Measuring Range, Max:100 ft
Measuring Range, Min:1 ft
Number of Wires:3
Power Consumption:24 mA
Process Connection Size:2 in
Process Connection Type:NPT Male and Female
Process Temperature, Max:60 °C
Process Temperature, Min:-40 °C
Sensor/Transmitter Power:50 µW
Signal fail-safe:30 seconds, 22 mA output
Supply Voltage:24 Vdc
Tank Type:Metal
