DwyerOmegaLVD-800-Series
LVD-803

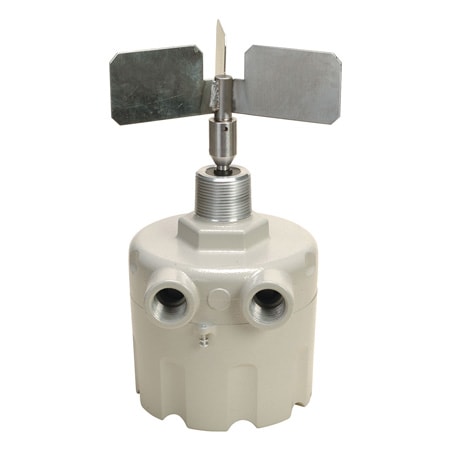

ROTARY PADDLE BIN MONITOR CE
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:Class I, Div. 1&2, Groups C, D; Class II, Div. 1&2, Groups E, F, G CE Mark
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4
Insulation:PVC
Materials:304 Stainless Steel, Steel, NBR
Media Compatibility:Dry Bulk Solids, Grain, Powders, Sand
Operating Pressure, Max:30 psi
Operating Temperature, Max:65 °C
Operating Temperature, Min:-40 °C
Process Connection Size:1 1/4 in
Process Connection Type:NPT Male
Sensitivity:5 lb/ft3
Sensitivity Note:80 kg/m3 (5 lb/ft3) minimum material density (when using large 3-vane paddle)
Supply Power Note:115 Vac (± 15%); 9 VA; 50/60 Hz
Supply Power Type:AC
Supply Voltage:115 Vac
Switch Rating:1 A @ 60 or 120 Vac/Vdc
Switch Type:SPDT NO/NC, Selectable
Weight:3.9 kg
