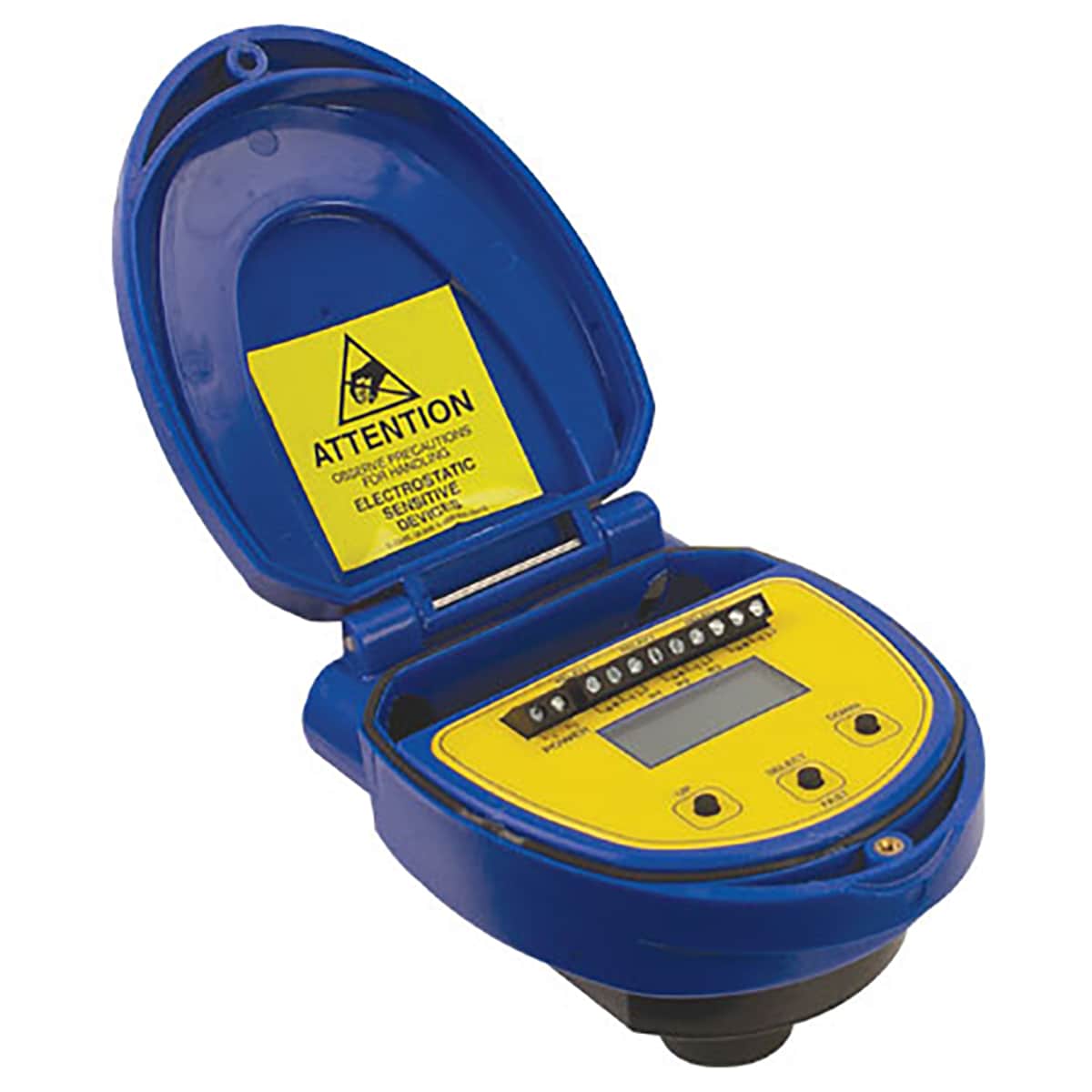

DwyerOmegaLVCN1700-Series
LVCN1718
ULTRASONIC LEVEL CONTROLLER
- 가격
- 2,196,730 원
- VAT 10%
- 219,673 원
- 총 금액
- 2,416,403 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:General purpose, CE, RoHS
Beam Width:3 in
Deadband:8 in
Display:LCD
Display Measuring Units:cm, ft, in, m, %
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4
Insulation:PVC
Level Detection Range:8 in to 216 in
Materials, Wetted:FKM, PVDF
Media Compatibility:Oil, Solvents, Water
Number of Digits:6
Operating Pressure, Max:30 psi
Operating Temperature, Max:71 °C
Operating Temperature, Min:-40 °C
Process Connection Size:2 in
Process Connection Type:NPT Male
Process Temperature, Max:60 °C
Process Temperature, Min:-20 °C
Repeatability:0.25 in
Supply Power Type:AC
Supply Voltage:95 to 250 Vac, 20 W @ 120 Vac
Switch Note:Relay 1, SPDT relays Relay 2 and 3, SPST, N.O. All commons connected together
Switch Rating:1 A @ 60 or 120 Vac/Vdc
Switch Type:SPDT NO/NC, Selectable
