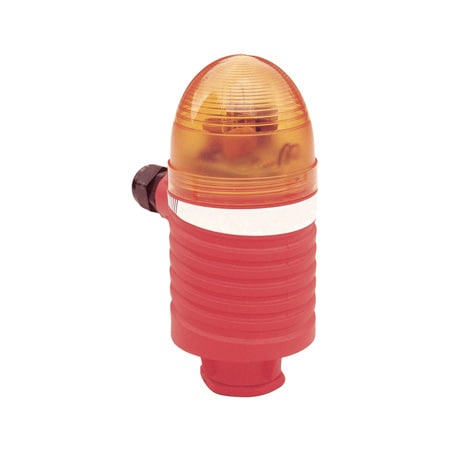

DwyerOmegaLVCN100
LVCN-100
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Conduit Connection:1/2 in NPT
Control Output:SPDT Relay
Diameter:2.8 in
Enclosure Material:Polypropylene
Enclosure Ratings:IP65, NEMA Type 4X
Height:4.7 in
Light Level:>50,000 CP
Materials, Wetted:Polypropylene
Mounting:Vertical
Number of Sensors:1
Output Detail:Isolated and sealed single pole double throw (SPDT) relay, Form C
Power Consumption:5 W
Process Connection Size:3/4 in
Process Connection Type:NPT Female
Process Temperature, Max:70 °C
Relay Voltage, Max:120 Vdc or 240 Vac
Sensor Excitation:Nominal 13.5 Vdc, 1 Watt maximum
Source of Light:High intensity lamp
Supply Power Note:Switch Type Selectable, NO or NC, 120 Vac
Supply Voltage:120 Vac
Switch Operation:Selectable, NO or NC states
Switching Current:10 A
Time Delay:0.15 to 60 sec
