DwyerOmegaLVC152

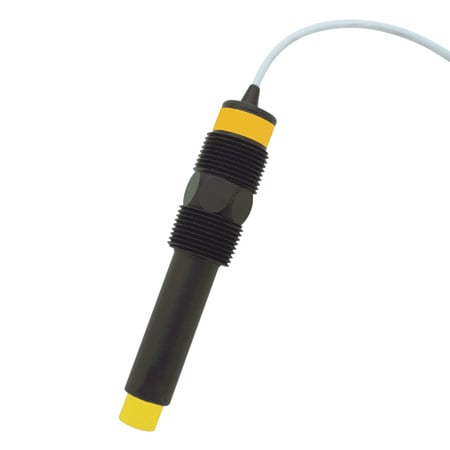

LVC-152-R
Economical Capacitance Level Switch
- 가격
- 708,350 원
- VAT 10%
- 70,835 원
- 총 금액
- 779,185 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.04 inH2O
Approvals:CE, RoHS
Cable Length:10 ft
Conductive Range:> 100 µS/cm
Dielectric Range:>20 constants
Enclosure Ratings:IP66, NEMA Type 4
Immersion Depth:2.6 in
Insulation:PVC
Materials, Wetted:Polypropylene
Media Compatibility:Oil, Solvents, Water
Number of Wires:4
Operating Pressure Note:150 psi @ 25°C (76°F), derated @ 1.667 psi per °C above 25°C (76°F)
Operating Pressure, Max:150 psi
Operating Temperature, Max:90 °C
Operating Temperature, Min:-40 °C
Power Consumption:25 mA
Probe Diameter:0.75 in
Probe Length:5 in
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Repeatability:± 0.02 inH2O
Supply Power Type:DC
Supply Voltage:12 to 36 Vdc
Switch Operation:Selectable Normally Open or Normally Closed
Switch Rating:1 A @ 60 or 120 Vac/Vdc
Switch Type:SPST
Wire Gauge:22 AWG
