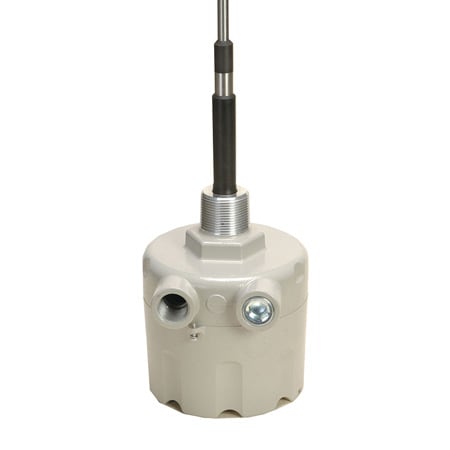

DwyerOmegaLV800-Series
LV804
RF Capacitance Point Level Sensors
- 가격
- 1,088,600 원
- VAT 10%
- 108,860 원
- 총 금액
- 1,197,460 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Altitude,Max:2000 m
Approvals:CSA(US) CSA(C), CE
Dielectric Range:1.5 to 9.0
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4
Insulation:PVC
Material Construction Option:Aluminum, Food Grade Nylon
Materials:Powder Coated Aluminum
Materials, Wetted:316 Stainless Steel, Aluminum, Nylon
Media Compatibility:Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Operating Pressure Note:3.5 bar (50 psi) maximum (aluminum connection)
Operating Pressure, Max:50 psi
Operating Temperature, Max:65 °C
Operating Temperature, Min:-40 °C
Probe Length:16 in
Process Connection Size:1 1/4 in
Process Connection Type:NPT Male
Sensitivity:0.5 pf to 150 pf
Sensitivity Note:Multi-turn potentiometer adjustment 0.5 pf to 150 pf
Stability:± 0.027 pf per °C @ 0.5 pf setting
Supply Power Note:115 Vac (± 15%), 2.5 VA, 50/60 Hz
Supply Power Type:AC
Supply Voltage:115 Vac, 2.5 VA
Switch Rating:5 A @ 250 Vac, 30 Vdc
Switch Type:SPDT NO/NC, Selectable
Time Delay:0.25 to 15 sec
