DwyerOmegaLV500-Series
LV-510

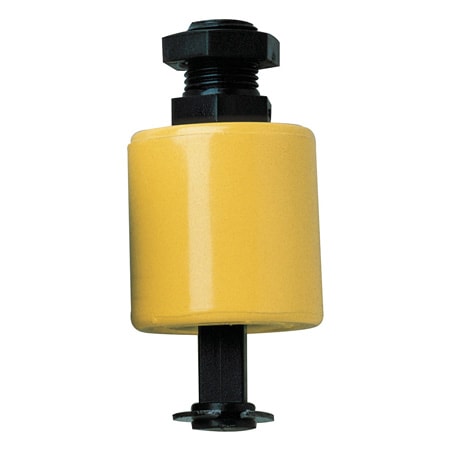

Single Station Vertical Level Switch
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.19 inH2O
Approvals:General purpose, CE, RoHS
Cable Length:2 ft
Enclosure Ratings:IP68, NEMA Type 6
Insulation:PVC
Material Construction Option:Polypropylene
Materials, Wetted:Polypropylene
Media Compatibility:Oil, Solvents, Water
Number of Wires:2
Operating Pressure, Max:25 psi
Operating Temperature, Max:90 °C
Operating Temperature, Min:-40 °C
Probe Length:2.3 in
Process Connection Size:1/8 in
Process Connection Type:NPT Male
Repeatability:± 0.07 inH2O
Specific Gravity:0.8
Switch Operation:Dry switch closure, Selectable Normally Open or Normally Closed
Switch Rating:50 VA @ 120 Vac
Switch Type:SPST
Wire Gauge:22 AWG
