DwyerOmegaLTUR-3022-Series
LTUR-3022

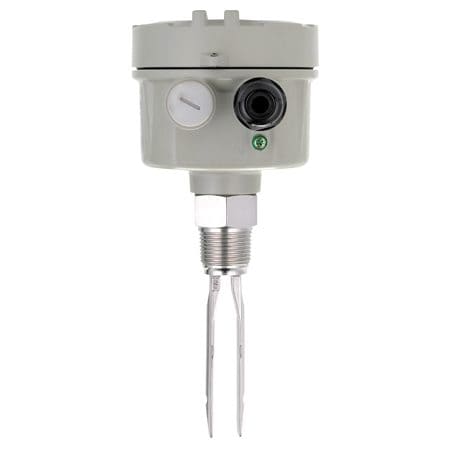

Standard-Type Tuning Fork Level Switch
- 가격
- 897,140 원
- VAT 10%
- 89,714 원
- 총 금액
- 986,854 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE, RoHS, UKCA
Density, Max:0.7g/cm ³
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP65
Materials:Aluminum, 316 Stainless Steel
Materials, Wetted:316 Stainless Steel
Media Compatibility:Oil, Solvents, Water
Operating Pressure, Max:600 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-40 °C
Power Consumption:10 VA
Probe Length:4 in
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:130 °C
Process Temperature, Min:-40 °C
Sensitivity:Switch selectable - HI/LO
Supply Power Type:AC/DC
Supply Voltage:20 to 250 Vac/Vdc
Switch Rating:5 A @ 250Vac/28Vdc
Switch Type:SPDT NO/NC, Selectable
Time Delay:1 to 3 sec
Vertical Load on Rod, Max:20 Nm
Vibration:350 to 370 Hz
